DTC144EKA - NPN Digital Transistors

Name: DTC144EKA
SKU: DTC144EKA-1145651

MCC

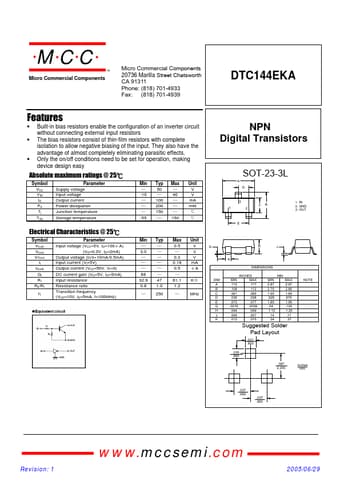

The DTC144EKA by MCC is a NPN Digital Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	DTC144EKA
Manufacturer	MCC
File Size	463.84 KB
Description	NPN Digital Transistors
Datasheet	DTC144EKA-MCC.pdf
Additional preview pages of the DTC144EKA datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy Absolute maximum ratings @ 25℃ Symbol VCC VIN IO Pd Tj Tstg Parameter Sup.
