DL957B - (DL957B - DL982B) 0.5W Silicon Planar Zener Diodes

Product Overview

MCC

Part number	DL957B
Manufacturer	MCC
File Size	229.81 KB
Description	(DL957B - DL982B) 0.5W Silicon Planar Zener Diodes
Datasheet	DL957B Datasheet

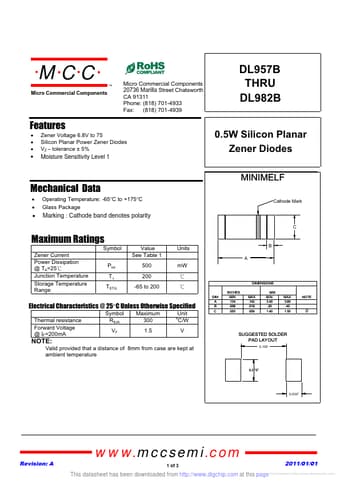

Additional preview pages of the DL957B datasheet.

x x x.
Zener Voltage 6.8V to 75 Silicon Planar Power Zener Diodes VZ.
tolerance ± 5% Moisture Sensitivity Level 1 Mechanical Data.
Operating Temperature: -65°C to +175°C Glass Package Cathode Mark x Marking : Cathode band denotes polarity C Maximum Ratings Symbol Zener Current Power Dissipation @ TA=25к Junction Temperature Storage Temperature Range Ptot TJ TSTG Value See Table 1 500 200 -65 to 200 Units A B mW к к DIM A B C INCHES MIN .134 .008 .055.
