DL4124 - 500mW Silicon Zener Diodes

Product Overview

MCC

Part number	DL4124
Manufacturer	MCC
File Size	396.47 KB
Description	500mW Silicon Zener Diodes
Datasheet	DL4124 Datasheet
Note	This datasheet PDF includes multiple part numbers: DL4124, DL4614. Please refer to the document for exact specifications by model.

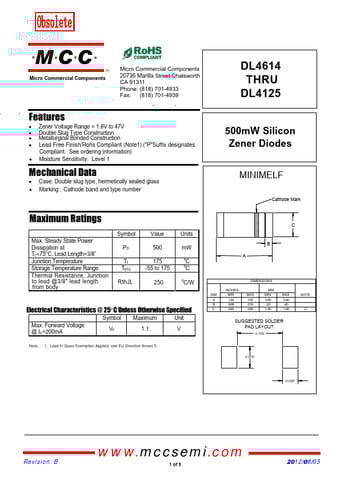

Additional preview pages of the DL4124 datasheet.

Zener Voltage Range = 1.8V to 47V.
Double Slug Type Construction.
Metallurgical Bonded Construction.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Moisture Sensitivity: Level 1 Mechanical Data.
Case: Double slug type, hermetically sealed glass.
Marking : Cathode band and type number Maximum Ratings Max. Steady State Power Dissipation at TL.
