DB106 - 1A Single Phase Bridge Rectifier

Product Overview

MCC

Part number	DB106
Manufacturer	MCC
File Size	315.57 KB
Description	1A Single Phase Bridge Rectifier
Datasheet	DB106 Datasheet
Note	This datasheet PDF includes multiple part numbers: DB106, DB101. Please refer to the document for exact specifications by model.

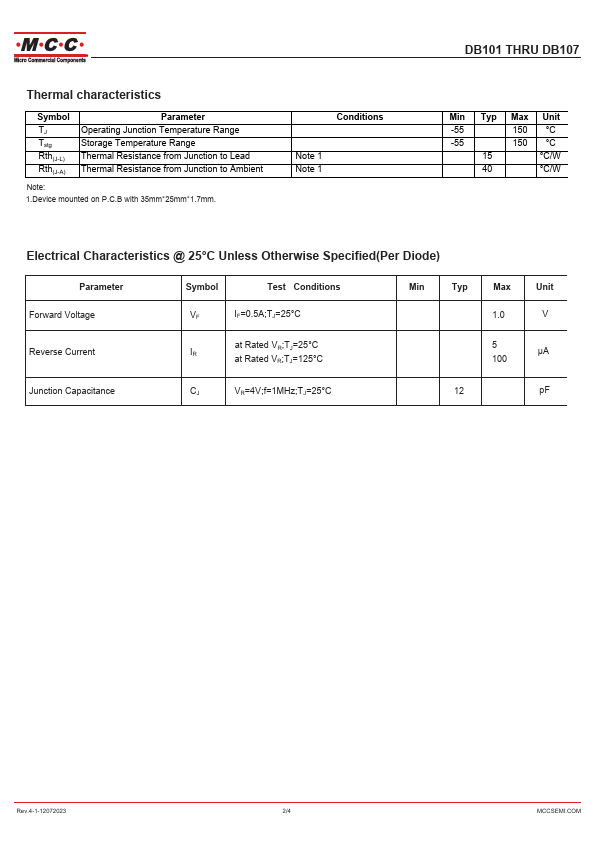

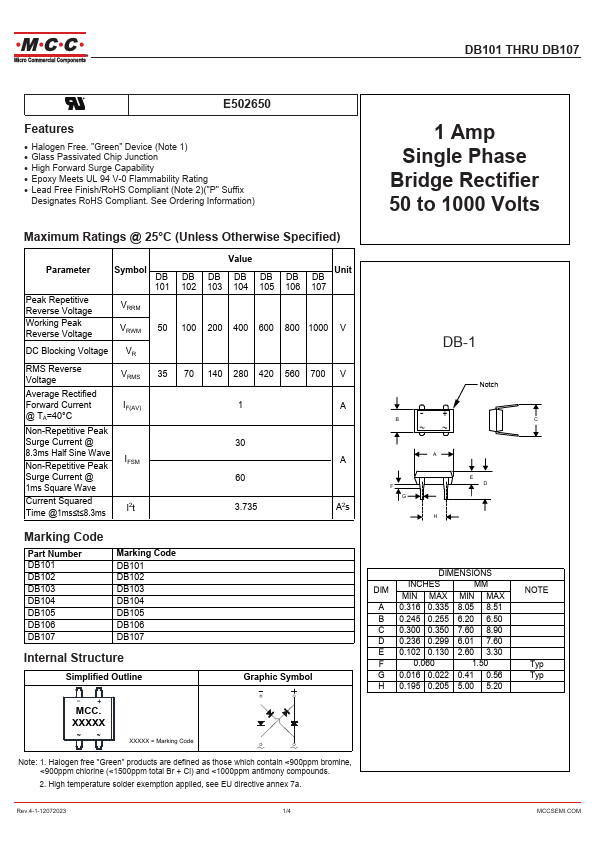

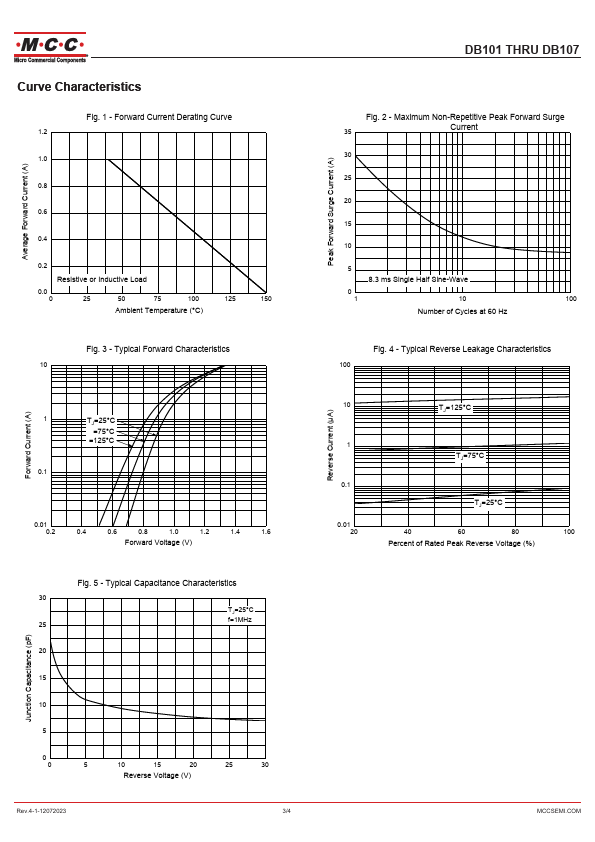

Additional preview pages of the DB106 datasheet.

Halogen Free. "Green" Device (Note 1).
Glass Passivated Chip Junction.
High Forward Surge Capability.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) 1 Amp Single Phase Bridge Rectifier 50 to 1000 Volts Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol DB DB DB DB.
