3SMBJ5921B - Surface Mount Silicon Zener Diodes

Download the 3SMBJ5921B datasheet PDF (3SMBJ5913B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount silicon zener diodes.

Features

  • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
  • 5.1 thru 200 Volt Voltage Range.
  • Low Inductance, Low Profile Mounting.
  • Glasss Passivated Junction.
  • Available On Tape and Reel.
  • Halogen free available upon request by adding suffix "-HF".
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1 Mechanical Data Terminals solderable per MIL-STD-750, Method 2026 P.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3SMBJ5913B-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text

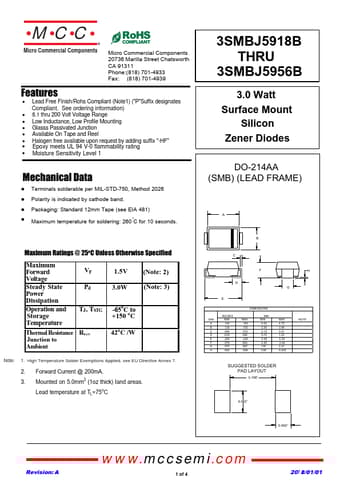

MCC R Micro Commercial Components Micro Commercial Components 20736 Marilla Street Chatsworth CA 91311 Phone:(818) 701-4933 Fax: (818) 701-4939 Features • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) • 5.1 thru 200 Volt Voltage Range • Low Inductance, Low Profile Mounting • Glasss Passivated Junction • Available On Tape and Reel • Halogen free available upon request by adding suffix "-HF" • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 Mechanical Data Terminals solderable per MIL-STD-750, Method 2026 Polarity is indicated by cathode band. Packaging: Standard 12mm Tape (see EIA 481) 0 Maximum temperature for soldering: 260 C for 10 seconds.
