2SC2001-L, 2SC2001-M - NPN Silicon Plastic-Encapsulate Transistor

MCC

📥 Download Datasheet

2SC2001-L Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SC2001-L, 2SC2001-M. Please refer to the document for exact specifications by model.

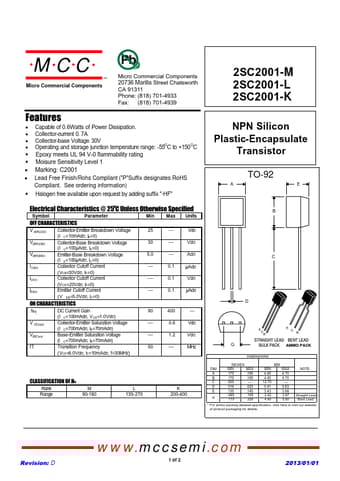

datasheet Preview Page 2

Datasheet Details

Part number	2SC2001-L, 2SC2001-M
Manufacturer	MCC
File Size	303.99 KB
Description	NPN Silicon Plastic-Encapsulate Transistor
Datasheet	2SC2001-M-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: 2SC2001-L, 2SC2001-M. Please refer to the document for exact specifications by model.

2SC2001-L Product details

Features

Capable of 0.6Watts of Power Dissipation.
Collector-current 0. 7A.
Collector-base Voltage 30V.
Operating and storage junction temperature range: -55OC to +150OC.
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1 x Marking: C2001.
Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS Compliant. See ordering information).
Halogen free available upon request by adding suffix "-HF" NPN Silicon Plasti.
