1EZ11D5 - 1.0W Silicon Zener Diodes

Download the 1EZ11D5 datasheet PDF (1EZ5.6D5 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1.0w silicon zener diodes.

Features

  • Excellent clamping capability.
  • VZ-tolerance+/-5%.
  • Low profile package.
  • Glass passivated junction.
  • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data.
  • Marking : Cathode Band and type number.
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1 Maximum Ratings Peak Pulse Power Dissipation on TA=75oC (1) Symbol PD Junction Temperature Storag.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1EZ5.6D5-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 1EZ11 - GLASS PASSIVATED JUNCTION ZENER DIODES (DC COMPONENTS)
  • 1EZ110 - GLASS PASSIVATED JUNCTION ZENER DIODES (DC COMPONENTS)
  • 1EZ110D5 - Silicon 1 Watt Zener Diode (Microsemi)
  • 1EZ110D5 - 1WATT SILICON ZENER DIODE (Jinan Gude Electronic Device)
  • 1EZ110D5 - 1.0 W Silicon Zener Diodes (Micro Commercial Components)
  • 1EZ10 - GLASS PASSIVATED JUNCTION ZENER DIODES (DC COMPONENTS)
  • 1EZ100 - GLASS PASSIVATED JUNCTION ZENER DIODES (DC COMPONENTS)
  • 1EZ12 - GLASS PASSIVATED JUNCTION ZENER DIODES (DC COMPONENTS)
  • 1EZ120 - GLASS PASSIVATED JUNCTION ZENER DIODES (DC COMPONENTS)
  • 1EZ120D5 - Silicon 1 Watt Zener Diode (Microsemi)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text

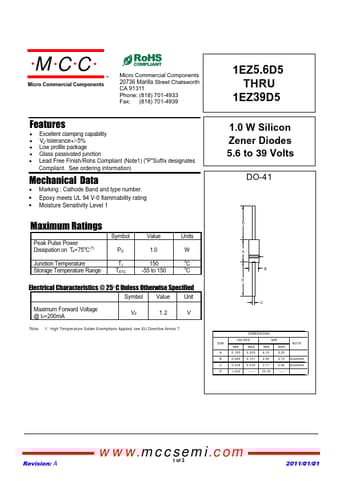

MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# 1EZ5.6D5 THRU 1EZ39D5 Features • Excellent clamping capability • VZ-tolerance+/-5% • Low profile package • Glass passivated junction • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data • Marking : Cathode Band and type number. • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 Maximum Ratings Peak Pulse Power Dissipation on TA=75oC (1) Symbol PD Junction Temperature Storage Temperature Range TJ TSTG Value 1.
