SB1045CT - 10A Dual Schottky Barrier Rectifier

Download the SB1045CT datasheet PDF. This datasheet also covers the SB1020CT variant, as both devices belong to the same 10a dual schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB1020CT-MAYLOON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB1045CT
Manufacturer MAYLOON
File Size 255.35 KB
Description 10A Dual Schottky Barrier Rectifier
Datasheet download datasheet SB1045CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB1045CT Schottky Barrier Rectifier Formosa MS
SB1045CT 10A DUAL SCHOTTKY BARRIER RECTIFIER WON-TOP
SB1045CT 10A High Power Schottky Barrier Rectifiers CITC
SB1045 10A SCHOTTKY BARRIER RECTIFIER WON-TOP
SB1045 Power Schottky Rectifier SIRECT

Other Datasheets by MAYLOON

Part Number Description
SB1045DC 10A Dual Schottky Barrier Rectifier
SB1045F 10A Schottky Barrier Rectifier
SB1045FCT 10A Dual Schottky Barrier Rectifier
SB1040CT 10A Dual Schottky Barrier Rectifier
SB1040DC 10A Dual Schottky Barrier Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

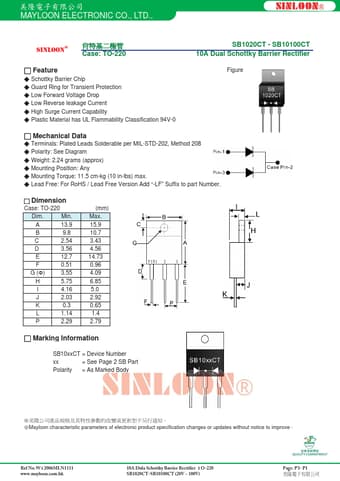

ऍໜႝηԖज़Ϧљ MAYLOON ELECTRONIC CO., LTD., SINLOON® ߕ௽ഗԲᄕጥ Case: TO-220 SB1020CT - SB10100CT 10A Dual Schottky Barrier Rectifier ϭ Feature Ϭ Schottky Barrier Chip Ϭ Guard Ring for Transient Protection Ϭ Low Forward Voltage Drop Ϭ Low Reverse leakage Current Ϭ High Surge Current Capability Ϭ Plastic Material has UL Flammability Classification 94V-0 Figure ϭ Mechanical Data Ϭ Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Ϭ Polarity: See Diagram Ϭ Weight: 2.24 grams (approx) Ϭ Mounting Position: Any Ϭ Mounting Torque: 11.5 cm-kg (10 in-lbs) max. Ϭ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number. ϭ Dimension Case: TO-220 Dim. Min. A 13.9 B 9.8 C 2.54 D 3.56 E 12.7 F G (ĭ) 0.51 3.55 H 5.75 I 4.16 J 2.03 K 0.3 L 1.14 P 2.29 (mm) Max.
