5.0SMCJ15CA - 5000W Surface Mount Transient Voltage Suppressor

Download the 5.0SMCJ15CA datasheet PDF. This datasheet also covers the 5.0SMCJ11 variant, as both devices belong to the same 5000w surface mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5.0SMCJ11-MAYLOON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5.0SMCJ15CA
Manufacturer MAYLOON
File Size 530.48 KB
Description 5000W Surface Mount Transient Voltage Suppressor
Datasheet download datasheet 5.0SMCJ15CA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5.0SMCJ15CA SMD Transient Voltage Suppressor Diodes Diotec
5.0SMCJ15CA 5000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR WON-TOP
5.0SMCJ15CA 5000W Surface Mount Transient Voltage Suppressor TAITRON
5.0SMCJ15CA SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR RECTIFIERS Rectron
5.0SMCJ15CA Transient Voltage Suppressors HITANO

Other Datasheets by MAYLOON

Part Number Description
5.0SMCJ15C 5000W Surface Mount Transient Voltage Suppressor
5.0SMCJ15 5000W Surface Mount Transient Voltage Suppressor
5.0SMCJ150 5000W Surface Mount Transient Voltage Suppressor
5.0SMCJ150A 5000W Surface Mount Transient Voltage Suppressor
5.0SMCJ150C 5000W Surface Mount Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

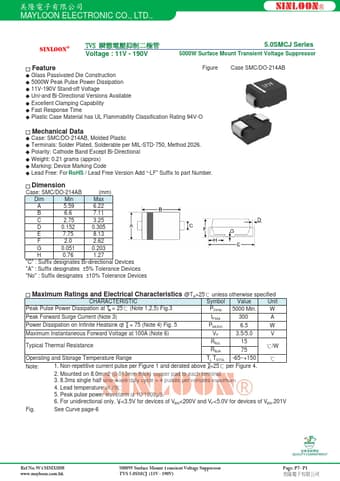

ऍໜႝηԖज़Ϧљ MAYLOON ELECTRONIC CO., LTD., SINLOON® UWT!ᛳኪሽᚘ‫ࠫލ‬Բᄕጥ Voltage : 11V - 190V 5.0SMCJ Series 5000W Surface Mount Transient Voltage Suppressor ϭ Feature Figure Ϭ Glass Passivated Die Construction Ϭ 5000W Peak Pulse Power Dissipation Ϭ 11V-190V Stand-off Voltage Ϭ Uni-and Bi-Directional Versions Available Ϭ Excellent Clamping Capability Ϭ Fast Response Time Ϭ Plastic Case Material has UL Flammability Classification Rating 94V-O Case SMC/DO-214AB ϭ Mechanical Data Ϭ Case: SMC/DO-214AB, Molded Plastic Ϭ Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026. Ϭ Polarity: Cathode Band Except Bi-Directional Ϭ Weight: 0.21 grams (approx) Ϭ Marking: Device Marking Code Ϭ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
