MY50 - Triple Balanced Mixer

Product Overview

MACOM

📥 Download Datasheet

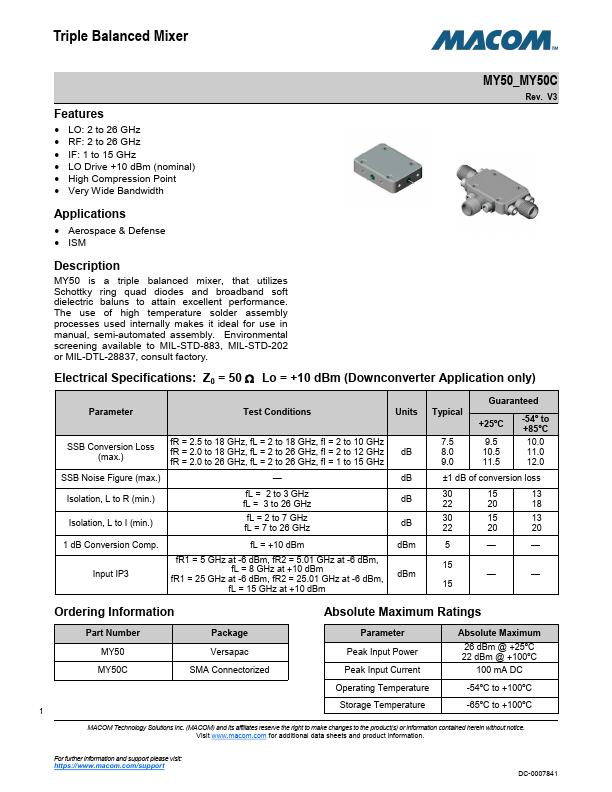

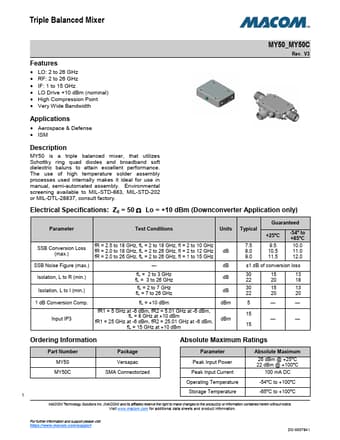

MY50 Triple Balanced Mixer by MACOM - Datasheet Preview — Datasheet preview – MY50

Datasheet Details

Part number	MY50
Manufacturer	MACOM
File Size	464.90 KB
Description	Triple Balanced Mixer
Datasheet	MY50 Datasheet

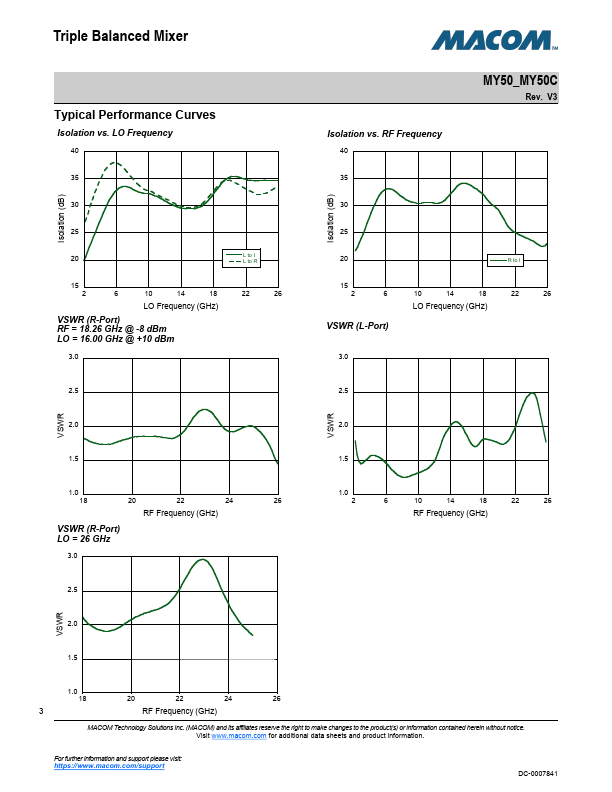

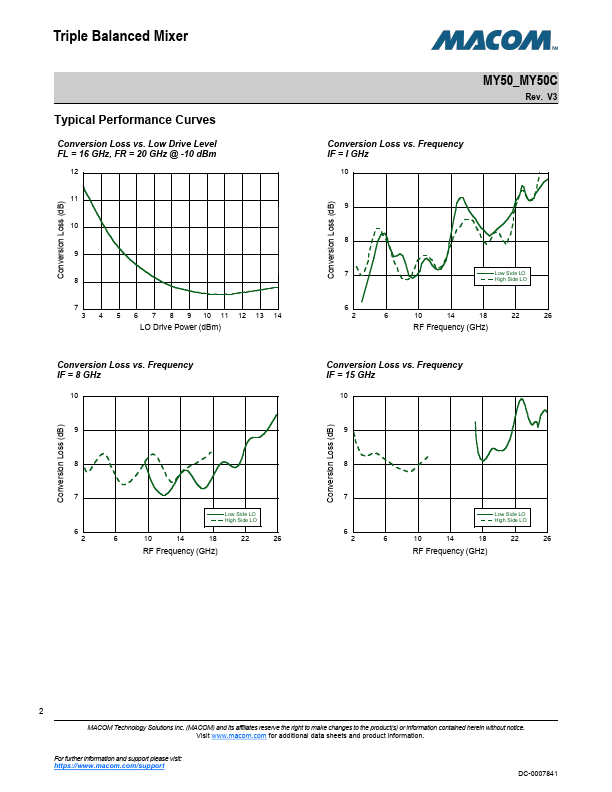

Additional preview pages of the MY50 datasheet.

Product details

Description

MY50 is a triple balanced mixer, that utilizes Schottky ring quad diodes and broadband soft dielectric baluns to attain excellent performance.

Features

LO: 2 to 26 GHz.
RF: 2 to 26 GHz.
IF: 1 to 15 GHz.
LO Drive +10 dBm (nominal).
High Compression Point.
Very Wide Bandwidth MY50_MY50C Rev. V3.
