MKVC-1A06R8 - 1000V Si High Voltage Capacitors

Download the MKVC-1A06R8 datasheet PDF (MKVC-1A03R6 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1000v si high voltage capacitors.

Description

The MACOM KV CAPS™ Si high voltage capacitors feature very high working voltage ratings, very low loss and excellent stability by virtue of their novel internal construction and very high quality dielectric layers.

Features

  • High Working Voltage: 1000 V.
  • Wide Range of Capacitance: 3.6 - 1300 pF.
  • Excellent Stability.
  • Available in plastic SMT or ceramic hermetic packages.
  • RoHS.
  • Compliant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MKVC-1A03R6-MACOM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by MACOM

Full PDF Text Transcription

Click to expand full text

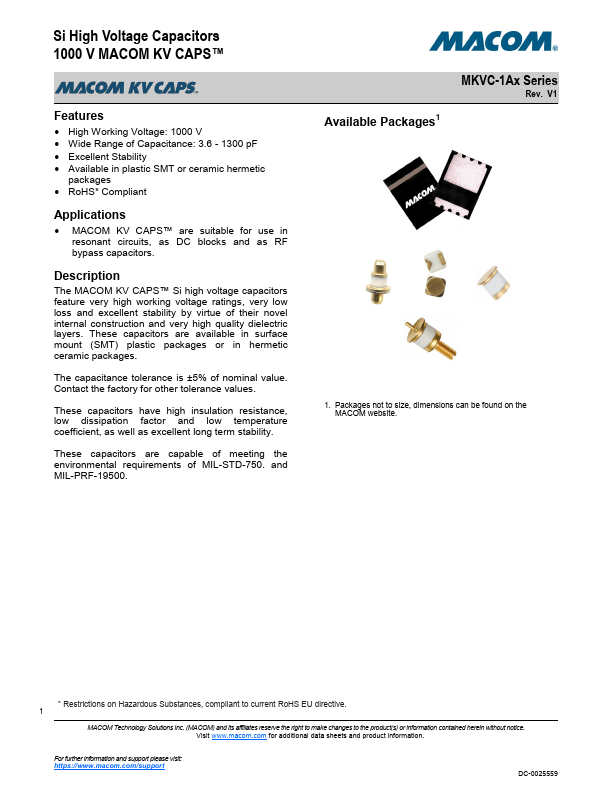

Si High Voltage Capacitors 1000 V MACOM KV CAPS™ Features • High Working Voltage: 1000 V • Wide Range of Capacitance: 3.6 - 1300 pF • Excellent Stability • Available in plastic SMT or ceramic hermetic packages • RoHS* Compliant Applications • MACOM KV CAPS™ are suitable for use in resonant circuits, as DC blocks and as RF bypass capacitors. Description The MACOM KV CAPS™ Si high voltage capacitors feature very high working voltage ratings, very low loss and excellent stability by virtue of their novel internal construction and very high quality dielectric layers. These capacitors are available in surface mount (SMT) plastic packages or in hermetic ceramic packages. The capacitance tolerance is ±5% of nominal value. Contact the factory for other tolerance values.
