MKVC-1A0510 - 1000V Si High Voltage Capacitors

Product Overview

MACOM

Datasheet Details

Part number	MKVC-1A0510
Manufacturer	MACOM
File Size	1.21 MB
Description	1000V Si High Voltage Capacitors
Datasheet	MKVC-1A0510 Datasheet
Note	This datasheet PDF includes multiple part numbers: MKVC-1A0510, MKVC-1A03R6. Please refer to the document for exact specifications by model.

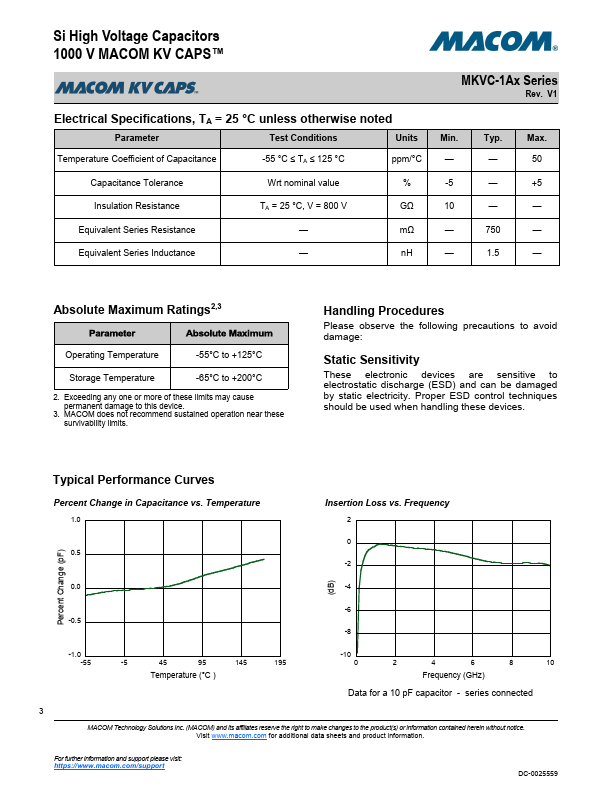

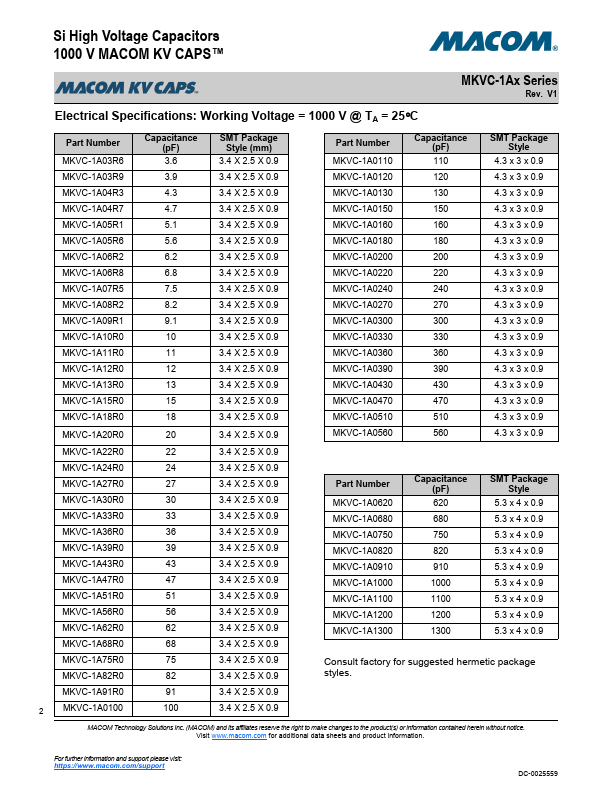

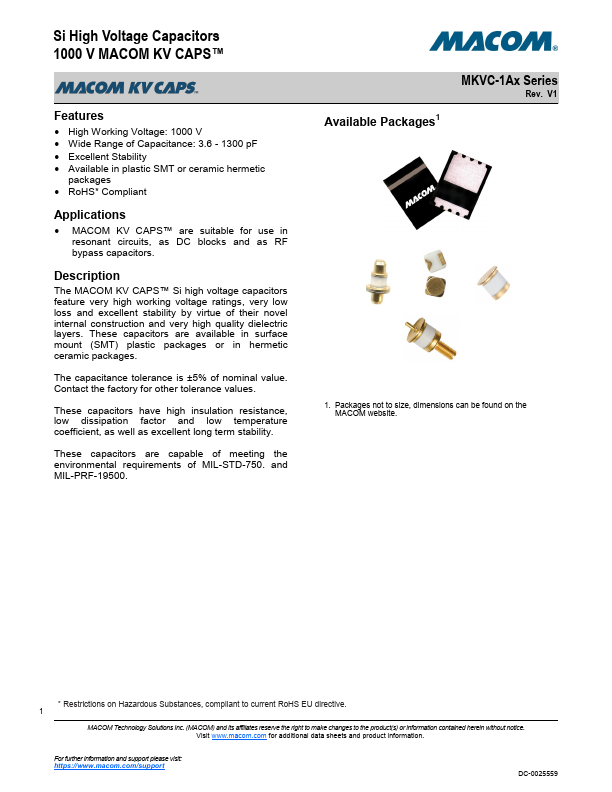

Additional preview pages of the MKVC-1A0510 datasheet.

Product details

Description

The MACOM KV CAPS™ Si high voltage capacitors feature very high working voltage ratings, very low loss and excellent stability by virtue of their novel internal construction and very high quality dielectric layers.

Features

High Working Voltage: 1000 V.
Wide Range of Capacitance: 3.6 - 1300 pF.
Excellent Stability.
Available in plastic SMT or ceramic hermetic packages.
RoHS.
Compliant.
