MASW-011154

The MASW-011154 is SP4T Absorptive Switch designed by MACOM.

Product Overview

MACOM

📥 Download Datasheet

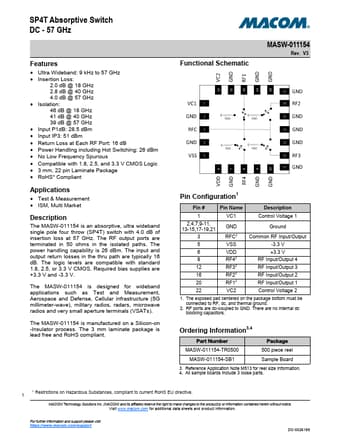

MASW-011154 SP4T Absorptive Switch by MACOM - Datasheet Preview — Datasheet preview – MASW-011154

Datasheet Details

Part number	MASW-011154
Manufacturer	MACOM
File Size	1.80 MB
Description	SP4T Absorptive Switch
Datasheet	MASW-011154-MACOM.pdf
Additional preview pages of the MASW-011154 datasheet.

Product details

Description

The MASW-011154 is an absorptive, ultra wideband single pole four throw (SP4T) switch with 4.0 dB of insertion loss at 57 GHz.

Features

Ultra Wideband: 9 kHz to 57 GHz.
Insertion Loss: 2.0 dB @ 18 GHz 2.8 dB @ 40 GHz 4.0 dB @ 57 GHz.
Isolation: 46 dB @ 18 GHz 41 dB @ 40 GHz 39 dB @ 57 GHz.
Input P1dB: 28.5 dBm.
Input IP3: 51 dBm.
Return Loss at Each RF Port: 16 dB.
Power Handling including Hot Switching: 26 dBm.
No Low Frequency Spurious.
Compatible with 1.8, 2.5, and 3.3 V CMOS Logic.
3 mm, 22 pin Laminate Package.
RoHS.
Comp.
