2026-6003-20 - Directional Couplers

Download the 2026-6003-20 datasheet PDF. This datasheet also covers the 2026-6001-10 variant, as both devices belong to the same directional couplers family and are provided as variant models within a single manufacturer datasheet.

Description

These compact broad band couplers operate over frequency bandwidths of 12 to 1 up to 36 to 1.

Each coupler is constructed in a rugged aluminum housing with Stripline circuitry.

The input, output and coupled output ports are stainless steel SMA connectors.

Features

  • Frequency Range: 0.5 - 18 GHz.
  • Standard Coupling Values: 10 and 20 dB.
  • Temperature Range: -54°C to +125°C.
  • Connectors: SMA per MIL-C-39012.
  • Isolated Port with Non-Removable 50 Ohm Termination Outline Drawing.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2026-6001-10-MACOM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
2026 P-Channel MOSFET Tuofeng Semiconductor
2020 Power Management ACC Micro
20200 Transistor Feihonltd
2021 N-Channel Small Signal MOSFET Tuofeng Semiconductor
2021-1G LED BACKLIGHT MicroElectronics

Other Datasheets by MACOM Technology Solutions

Part Number Description
2026-6001-10 Directional Couplers
2026-6004-10 Directional Couplers
2026-6007-10 Directional Couplers
2026-6009-20 Directional Couplers
2026-6010-10 Directional Couplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

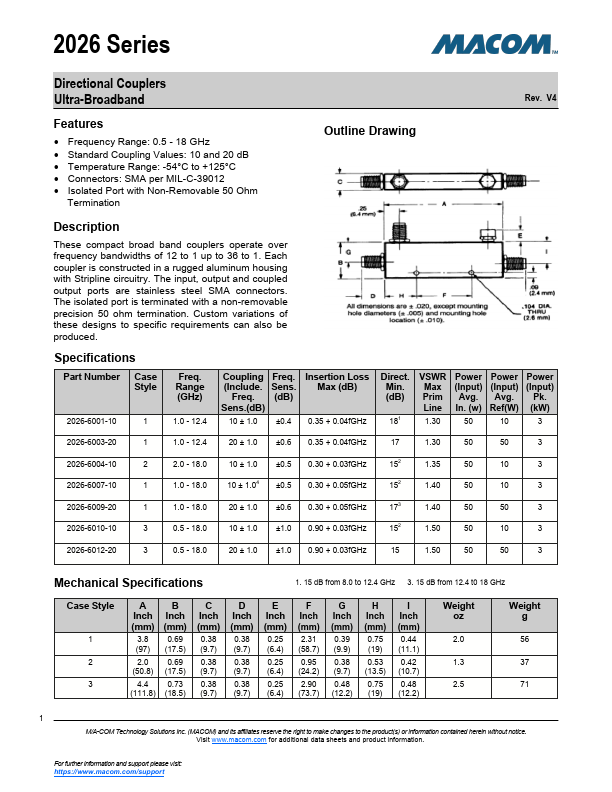

2026 Series Directional Couplers Ultra-Broadband Rev. V4 Features  Frequency Range: 0.5 - 18 GHz  Standard Coupling Values: 10 and 20 dB  Temperature Range: -54°C to +125°C  Connectors: SMA per MIL-C-39012  Isolated Port with Non-Removable 50 Ohm Termination Outline Drawing Description These compact broad band couplers operate over frequency bandwidths of 12 to 1 up to 36 to 1. Each coupler is constructed in a rugged aluminum housing with Stripline circuitry. The input, output and coupled output ports are stainless steel SMA connectors. The isolated port is terminated with a non-removable precision 50 ohm termination. Custom variations of these designs to specific requirements can also be produced. Specifications Part Number Case Style 2026-6001-10 1 Freq. Range (GHz) 1.
