2025-6020-20, 2025-6001-06 - Directional Couplers

Name: 2025-6020-20
SKU: 2025-6020-20-1579652

MACOM

The 2025-6020-20 by MACOM is a Directional Couplers. Below is the official datasheet preview.

Datasheet Details

Part number	2025-6020-20, 2025-6001-06
Manufacturer	MACOM
File Size	369.93 KB
Description	Directional Couplers
Datasheet	2025-6001-06-MACOM.pdf
Note	This datasheet PDF includes multiple part numbers: 2025-6020-20, 2025-6001-06. Please refer to the document for exact specifications by model.
Additional preview pages of the 2025-6020-20 datasheet.

at any time, without notice.

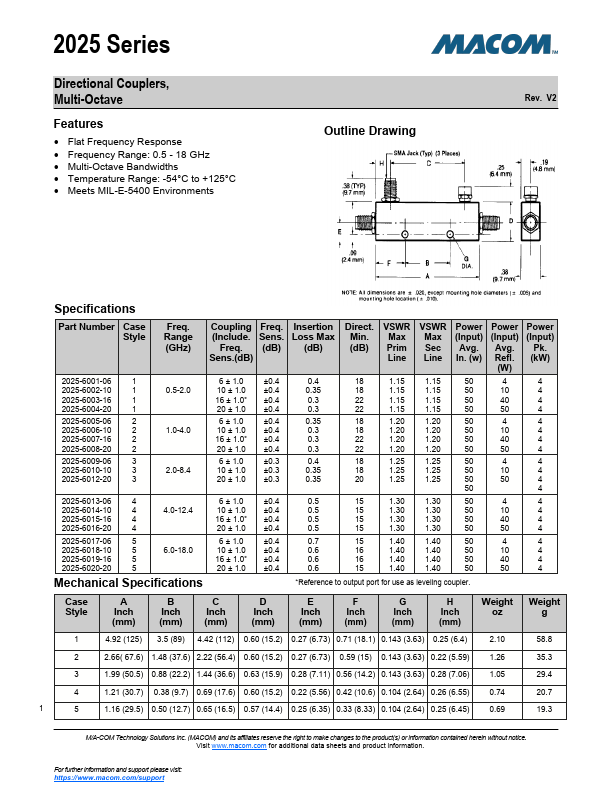

Flat Frequency Response.
Frequency Range: 0.5 - 18 GHz.
Multi-Octave Bandwidths.
Temperature Range: -54°C to +125°C.
Meets MIL-E-5400 Environments Outline Drawing Rev. V2 Specifications Part Number Case Style Freq. Range (GHz) Coupling Freq. Insertion (Include. Sens. Loss Max Freq. (dB) (dB) Sens. (dB) Direct. Min. (dB) VSWR Max Prim Line VSWR Max Sec Line Power Power Power (Input) (Input) (Input) Avg. Avg. Pk. In. (w) Refl. (kW) (W) 2025-6001-06 1 2025-6002-1.
