Datasheet Details
| Part number | 1N5711 |
|---|---|
| Manufacturer | MACOM |
| File Size | 471.84 KB |
| Description | General Purpose Axial Lead Glass Packaged Schottky Diodes |
| Datasheet |
 1N5711-MACOM.pdf
|
|
|
The 1N5711 is General Purpose Axial Lead Glass Packaged Schottky Diodes designed by MACOM.
| Part number | 1N5711 |
|---|---|
| Manufacturer | MACOM |
| File Size | 471.84 KB |
| Description | General Purpose Axial Lead Glass Packaged Schottky Diodes |
| Datasheet |
1N5711-MACOM.pdf
|
|
|
|

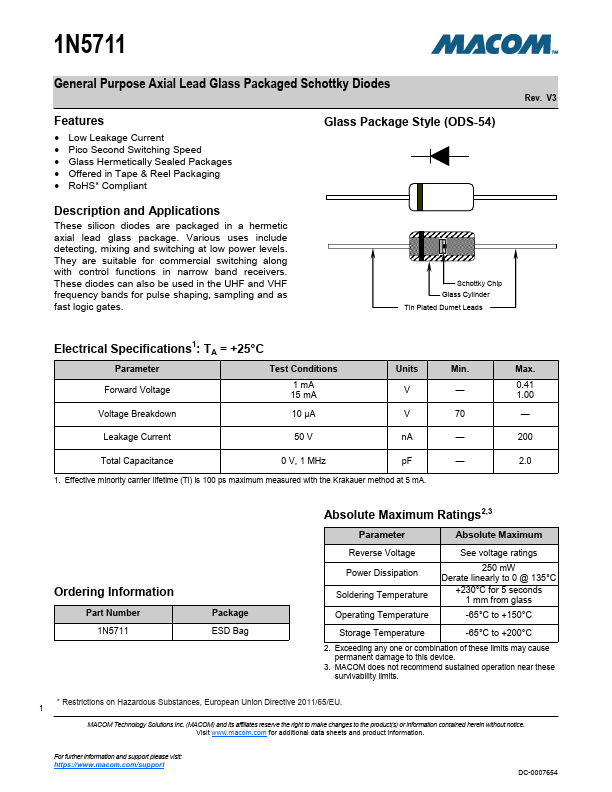

and Applications These silicon diodes are packaged in a hermetic axial lead glass package.Various uses include detecting, mixing and switching at low power levels.They are suitable for commercial switching along with control functions in narrow band receivers.These diodes can also be used in the UHF and VHF frequency bands for pulse shaping, sampling and as fast logic gates.Glass Package Style (ODS-54) Schottky Chip Glass Cylinder Tin Plated Dumet Leads Rev.V3 Electrical Specifications1:
