RS-385PH-17120, RS-385PH Datasheet - MABUCHI

RS-385PH-17120 Carbon-brush motors

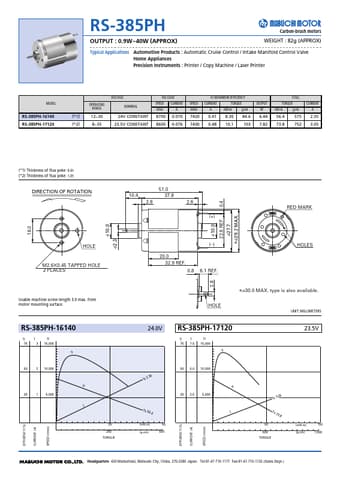

RS-385PH OUTPUT : 0.9W~40W (APPROX) Carbon-brush motors WEIGHT : 82g (APPROX) Typical Applications Automotive Products : Automatic Cruise Control / Intake Manifold Control Valve Home Appliances Precision Instruments : Printer / Copy Machine / Laser Printer MODEL RS-385PH-16140 RS-385PH-17120 ( 1) ( 2) OPERATING RANGE 12~30 8~35 VOLTAGE NOMINAL 24V CONSTANT 23.5V CONSTANT NO LOAD SPEED CURRENT r/min A 8700 0.070 8600 0.076 SPEED r/min AT MAXIMUM EFFICIENCY CURRENT TORQUE A mN.

RS-385PH-MABUCHI.pdf

This datasheet PDF includes multiple part numbers: RS-385PH-17120, RS-385PH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS-385PH-17120, RS-385PH

Manufacturer:

MABUCHI

File Size:

59.83 KB

Description:

Carbon-brush motors.

Note:

This datasheet PDF includes multiple part numbers: RS-385PH-17120, RS-385PH.
Please refer to the document for exact specifications by model.
