MSS39-148-B10B - P-Type Silicon Schottky Diodes

Download the MSS39-148-B10B datasheet PDF (MSS39-045-C15-MA included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for p-type silicon schottky diodes.

Description

The MSS39-xxx-x Series of Schottky diodes is fabricated on P-Type epitaxial substrates for superior 1/f noise performance in microwave biaseddetector applications up to 40 GHz.

Rev.

VBR Min.

Features

  • Very Low 1/f Noise.
  • Detector.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSS39-045-C15-MA-COM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MSS39 - P-Type Silicon Schottky Diodes (Aeroflex)
  • MSS3205 - (MSS6605 / MSS4305 / MSS3205 / MSS2105) 21/32/43/60 VOICE ROM (Mosel Vitelic)
  • MSS-xxx - RFCO-AXIAL CONNECTORS (Hirose Electric)
  • MSS0271 - 2.7 VOICE ROM (Mosel Vitelic)
  • MSS0287 - VOICE ROM (Mosel Vitelic)
  • MSS0306 - 3 VOICE ROM (Mosel Vitelic)
  • MSS0307 - (MSS1807 / MSS1507 / MSS1207 / MSS0907 / MSS0607 / MSS0307) 3/ 6/ 9/ 12 / 15 / 18 VOICE ROM (Mosel Vitelic)
  • MSS0307 - Voice ROM (Mosel-Vitelic)
  • MSS0317 - Variable pitch variable loudness 3 Voice ROM (Mosel Vitelic)
  • MSS0605 - VOICE ROM (Mosel Vitelic)
Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text

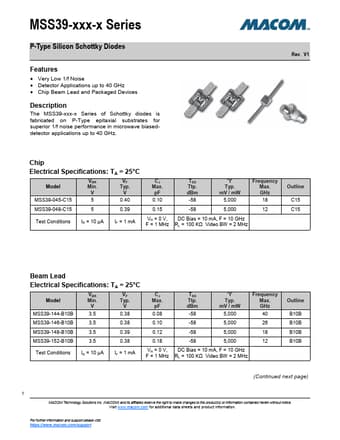

MSS39-xxx-x Series P-Type Silicon Schottky Diodes Features  Very Low 1/f Noise  Detector Applications up to 40 GHz  Chip Beam Lead and Packaged Devices Description The MSS39-xxx-x Series of Schottky diodes is fabricated on P-Type epitaxial substrates for superior 1/f noise performance in microwave biaseddetector applications up to 40 GHz. Rev. V1 Chip Electrical Specifications: TA = 25°C Model VBR Min. V VF Typ. V MSS39-045-C15 5 0.40 CJ Max. pF 0.10 TSS Ttp. dBm -58 ϓ Typ. mV / mW 5,000 Frequency Max. GHz 18 MSS39-048-C15 5 0.39 0.15 -58 5,000 12 Test Conditions IR = 10 µA IF = 1 mA VR = 0 V, DC Bias = 10 mA, F = 10 GHz F = 1 MHz RL = 100 KΩ Video BW = 2 MHz Outline C15 C15 Beam Lead Electrical Specifications: TA = 25°C Model VBR Min. V VF Typ.
