MAAP-011146-STD, MAAP-011146-STD-MA Power Amplifier

MAAP-011146-STD Description

MAAP-011146-STD Power Amplifier, 2 W 21.15 - 23.65 GHz .
The MAAP-011146-STD is a power amplifier assembled in a 7 mm surface mount package with a temperature compensated integrated power detector operating.

MAAP-011146-STD Features

* 24 dB Small Signal Gain
* 41 dBm Third Order Intercept Point (OIP3)
* >2 W Output P1dB
* 35 dBm Saturated Output Power
* Integrated Power Detector
* Bias 1330 mA @ 6 V
* Lead-Free 7 mm Cavity Package
* RoHS

MAAP-011146-STD Applications

* in the 23 GHz band. Ordering Information1 Part Number MAAP-011146-STD MAAP-011146-STR500 Package Bulk Quantity 500 piece reel MAAP-011146-001SMB Sample Board 1. Reference Application Note M513 for reel size information. Functional Schematic Rev. V2 Pin Configuration2 1 Ground 11 Ground 2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAAP-011146-STD, MAAP-011146-STD-MA. Please refer to the document for exact specifications by model.

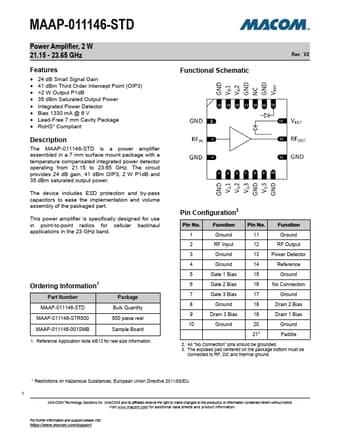

datasheet Preview Page 2 datasheet Preview Page 3
