MAAM-010617, MAAM-010617-MA, RF Driver Amplifier

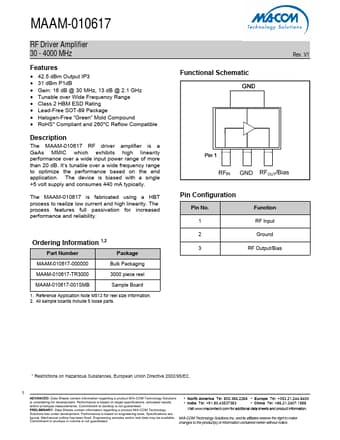

MAAM-010617 RF Driver Amplifier 30 - 4000 MHz

Features

*  42.5 dBm Output IP3
*  31 dBm P1dB
*  Gain: 16 dB @ 30 MHz, 13 dB @ 2.1 GHz
*  Tunable over Wide Frequency Range
*  Class 2 HBM ESD Rating
*  Lead-Free SOT-89 Package
*  Halogen-Free “Green” Mold Compound
*  RoHS
* Compliant and 260°C Reflow Compatible Descripti

Applications

* Section Typical Performance Curves, 30 MHz Configuration Rev. V1 Gain 30 20 10 0 -10 -20 -30 0.01 GAIN S11 S22 0.02 0.03 0.04 0.05 Frequency (GHz) 0.06 P1dB 20 18 16 14 12 10 4 6 8 10 12 14 16 18 20 22 24 26 28 30 Outpu
