M02050-15, M02050-15-MA - 3.3/5V Limiting Amplifier

MA-COM

M02050-15 Description

M02050-15 3.3/5V Limiting Amplifier for Aplications to 2.5 Gbps Preliminary - Rev V5P Preliminary Information *Subject to Change Application.

M02050-15 Features

* Operates with a 3.3 or 5V supply
* 4 mV typical input sensitivity at 2.5 Gbps
* PECL outputs
* Rate Selection for ≤ 1.25 Gbps operation
* Average Receive power monitor output (RSSIAVG)
* Peak-to-peak Receive power monitor output (RSSIPP)
* On

M02050-15 Applications

* 2.5 Gbps STM-16/OC-48 SDH/SONET
* 1.06, 2.12 and 4.24 Gbps Fibre Channel
* 1.25 Gbps Ethernet

📥 Download Datasheet

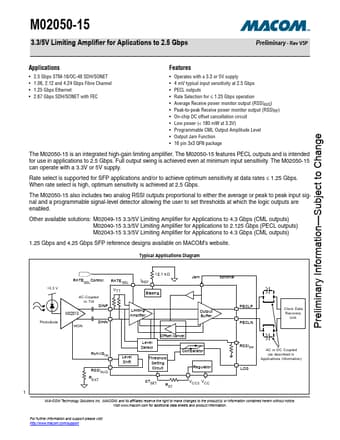

M02050-15 Datasheet Preview — This datasheet PDF includes multiple part numbers: M02050-15, M02050-15-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: M02050-15, M02050-15-MA
Manufacturer: MA-COM
File Size: 519.52 KB
Datasheet: M02050-15-MA-COM.pdf
Description: 3.3/5V Limiting Amplifier
Note: This datasheet PDF includes multiple part numbers: M02050-15, M02050-15-MA.
Please refer to the document for exact specifications by model.
