JH-113PIN, JH-113-MA Quadrature Hybrid Coupler

JH-113PIN Description

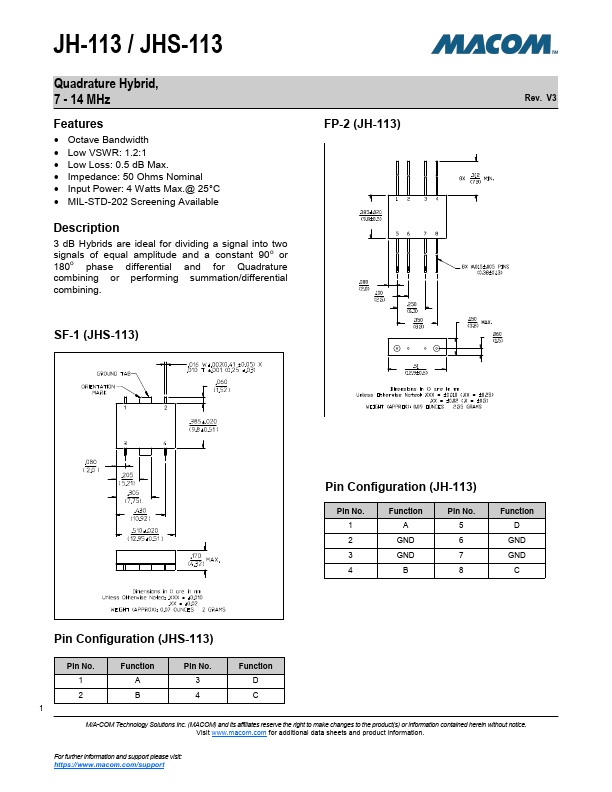

JH-113 / JHS-113 Quadrature Hybrid, 7 - 14 MHz .
3 dB Hybrids are ideal for dividing a signal into two signals of equal amplitude and a constant 90o or 180o phase differential and for Quadrature comb.

JH-113PIN Features

* Octave Bandwidth
* Low VSWR: 1.2:1
* Low Loss: 0.5 dB Max.
* Impedance: 50 Ohms Nominal
* Input Power: 4 Watts Max. @ 25°C

JH-113PIN Applications

* MACOM customers using or selling MACOM products for use in such applications do so at their own risk and agree to fully indemnify MACOM for any damages resulting from such improper use or sale. 4 M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: JH-113PIN, JH-113-MA. Please refer to the document for exact specifications by model.
