CD6759 - Schottky Barrier Rectifier Chip

Download the CD6759 datasheet PDF. This datasheet also covers the CD6759-MA variant, as both devices belong to the same schottky barrier rectifier chip family and are provided as variant models within a single manufacturer datasheet.

Description

The silicon Schottky barrier rectifier chip series offers a large reverse breakdown voltage with low forward voltage.

This die has an advanced highreliability passivation for very fast settling time and low leakage current.

Features

  • 1 Amp Schottky Barrier Rectifier Chips.
  • Silicon Dioxide Passivated.
  • Compatible With All Wire Bonding and Die Attach Techniques (with the exception of solder reflow).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CD6759-MA-COM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CD6759 1 AMP SCHOTTKY BARRIER RECTIFIER CDI
CD670815A POW-R-BLOK Dual SCR Powerex Power Semiconductors
CD671215A POW-R-BLOK Dual SCR Powerex Power Semiconductors
CD671415A POW-R-BLOK Dual SCR Powerex Power Semiconductors
CD671615A POW-R-BLOK Dual SCR Powerex Power Semiconductors

Other Datasheets by MACOM Technology Solutions

Part Number Description
CD6760 Schottky Barrier Rectifier Chip
CD6761 Schottky Barrier Rectifier Chip
CD6640 Silicon Switching Diode
CD6642 Silicon Switching Diode

Full PDF Text Transcription

Click to expand full text

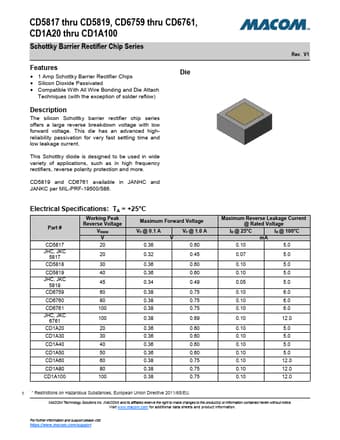

CD5817 thru CD5819, CD6759 thru CD6761, CD1A20 thru CD1A100 Schottky Barrier Rectifier Chip Series Features  1 Amp Schottky Barrier Rectifier Chips  Silicon Dioxide Passivated  Compatible With All Wire Bonding and Die Attach Techniques (with the exception of solder reflow) Description The silicon Schottky barrier rectifier chip series offers a large reverse breakdown voltage with low forward voltage. This die has an advanced highreliability passivation for very fast settling time and low leakage current. This Schottky diode is designed to be used in wide variety of applications, such as in high frequency rectifiers, reverse polarity protection and more. CD5819 and CD6761 available in JANHC and JANKC per MIL-PRF-19500/586. Die Rev.
