1N4696 - Low Noise Zener Diode

Download the 1N4696 datasheet PDF. This datasheet also covers the 1N4678-MA variant, as both devices belong to the same low noise zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • 50 µA Low Operating Current.
  • Double Plug Construction.
  • Metallurgically Bonded Rev. V3 Electrical Specifications: TA = +25°C (unless otherwise specified) TYPE NUMBER (Note 1) 1N4678 1N4679 1N4680 1N4681 1N4682 1N4683 1N4684 1N4685 1N4686 1N4687 1N4688 1N4689 1N4690 1N4691 1N4692 1N4693 1N4694 1N4695 1N4696 1N4697 1N4698 1N4699.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4678-MA-COM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N4696 500mW AXIAL-LEADED ZENER DIODES Microsemi
1N4696 SILICON ZENER DIODE Central Semiconductor
1N4696 Zeners Fairchild Semiconductor
1N4696 500mW Zener Diodes TAITRON
1N4696 ZENER DIODES Digitron Semiconductors

Other Datasheets by MACOM Technology Solutions

Part Number Description
1N4690 Low Noise Zener Diode
1N4691 Low Noise Zener Diode
1N4692 Low Noise Zener Diode
1N4693 Low Noise Zener Diode
1N4694 Low Noise Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

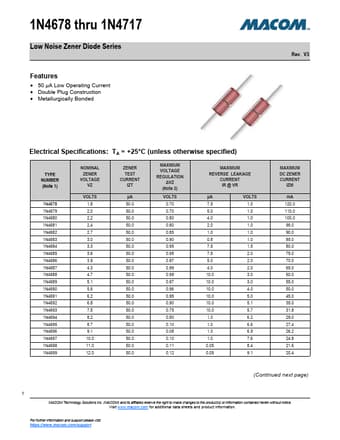

1N4678 thru 1N4717 Low Noise Zener Diode Series Features  50 µA Low Operating Current  Double Plug Construction  Metallurgically Bonded Rev. V3 Electrical Specifications: TA = +25°C (unless otherwise specified) TYPE NUMBER (Note 1) 1N4678 1N4679 1N4680 1N4681 1N4682 1N4683 1N4684 1N4685 1N4686 1N4687 1N4688 1N4689 1N4690 1N4691 1N4692 1N4693 1N4694 1N4695 1N4696 1N4697 1N4698 1N4699 NOMINAL ZENER VOLTAGE VZ VOLTS 1.8 2.0 2.2 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 8.7 9.1 10.0 11.0 12.0 ZENER TEST CURRENT lZT μA 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0 MAXIMUM VOLTAGE REGULATION ΔVZ (Note 2) VOLTS 0.70 0.70 0.80 0.80 0.85 0.90 0.95 0.95 0.97 0.99 0.99 0.97 0.96 0.95 0.90 0.75 0.50 0.10 0.08 0.
