1N3600

The 1N3600 is Silicon Switching Diode designed by MA-COM.

Product Overview

MA-COM

Part number	1N3600, 1N3600-MA
Manufacturer	MA-COM
File Size	597.42 KB
Description	Silicon Switching Diode
Datasheet	1N3600-MA-COM.pdf
Note	This datasheet PDF includes multiple part numbers: 1N3600, 1N3600-MA. Please refer to the document for exact specifications by model.

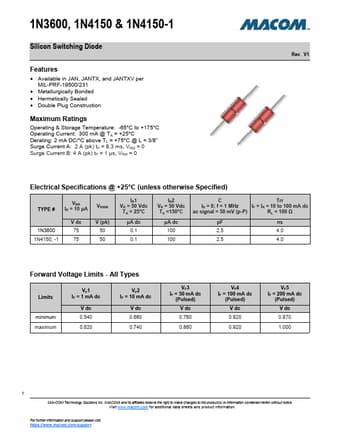

Additional preview pages of the 1N3600 datasheet.

Available in JAN, JANTX, and JANTXV per MIL-PRF-19500/231.
Metallurgically Bonded.
Hermetically Sealed.
Double Plug Construction Maximum Ratings Operating & Storage Temperature: -65°C to +175°C Operating Current: 300 mA @ TA = +25°C Derating: 2 mA DC/°C above TL = +75°C @ L = 3/8” Surge Current A: 2 A (pk) tP = 8.3 ms, VRM = 0 Surge Current B: 4 A (pk) tP = 1 µs, VRM = 0 Rev. V1 Electrical Specifications @ +25°C (unless otherwise Specified) TYPE # VBR IR = 10 μA VRWM 1.
