IT76620M - 23V/2A High Efficiency Synchronous Rectified Step-Down DC/DC Converter

Datasheet Details

Part number	IT76620M
Manufacturer	M3TEK
File Size	349.64 KB
Description	23V/2A High Efficiency Synchronous Rectified Step-Down DC/DC Converter
Datasheet	IT76620M-M3TEK.pdf

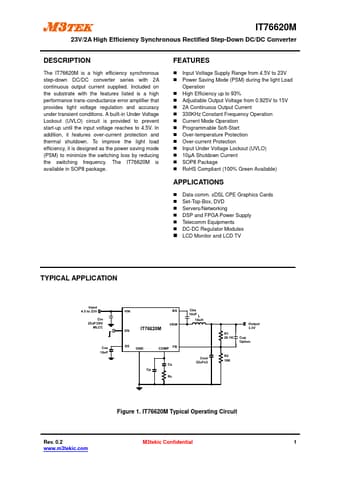

The IT76620M is a high efficiency synchronous step-down DC/DC converter series with 2A continuous output current supplied.

listed is a high performance trans-conductance error amplifier that provides tight voltage regulation and accuracy under transient conditions. A built-in Under Voltage Lockout (UVLO) circuit is provided to prevent start-up until the input voltage reaches to 4.5V. In addition, it features over-current protection and thermal shutdown. To improve the light load efficiency, it is designed as the power saving mode (PSM) to minimize the switching loss by reducing the switching frequency. The IT76620M.
