H40517MN, H40517MN-M - 10/100 BASE-T TRANSFORMER

H40517MN Description

M-TEK http://www.mag-tek.com.tw 10/100 BASE-T TRANSFORMER MODULES F Quad Port Transformer Modules Designed For 10/100 Base-Tx MultiPort Hub Applica.

H40517MN Applications

* F Compliant With IEEE 802.3 and ANSI X3.236 Standard Including Baseline Wander Compensation Specification Of 350uH OCL When Biased at 8mA From O°C to 70°C. F Low Profile Surface Mount Packaging Designed For Hi-Temp Reflow Process (250°C peak). F For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATION

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: H40517MN, H40517MN-M. Please refer to the document for exact specifications by model.

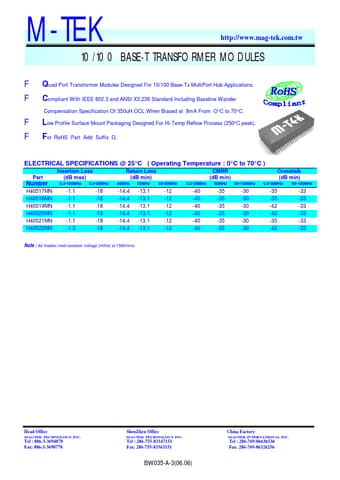

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
H40517MN, H40517MN-M
Manufacturer
M-TEK
File Size
150.22 KB
Datasheet
H40517MN-M-TEK.pdf
Description
10/100 BASE-T TRANSFORMER
Note
This datasheet PDF includes multiple part numbers: H40517MN, H40517MN-M.
Please refer to the document for exact specifications by model.
