MD2202, MD2200_M - Diskonchip 2000 Dip

M-Systems

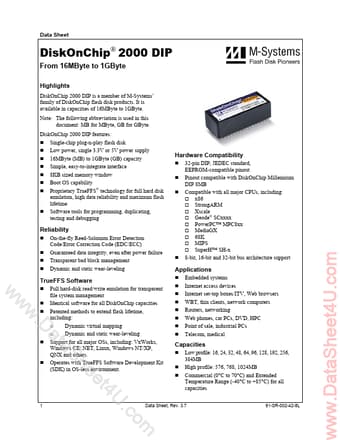

The MD2202 by M-Systems is a Diskonchip 2000 Dip. Below is the official datasheet preview.

📥 Download Datasheet

MD2202 Diskonchip 2000 Dip by M-Systems - Datasheet Preview — Official preview page of the **MD2202** Diskonchip 2000 Dip datasheet (M-Systems).

Datasheet Details

Part number	MD2202, MD2200_M
Manufacturer	M-Systems
File Size	342.25 KB
Description	Diskonchip 2000 Dip
Datasheet	MD2200_M-Systems.pdf
Note	This datasheet PDF includes multiple part numbers: MD2202, MD2200_M. Please refer to the document for exact specifications by model.
Additional preview pages of the MD2202 datasheet.

MD2202 Product details

Description

5 I/O Operation 6 Pin Diagram 6 Signal Descriptions 7 3. 3.1 3.2 3.3 3.4 3.5 Theory of Operation 8 Overview 8 System Interface 8 Boot Block 8 Error Detection Code/Error Correction Code (EDC/ECC) 9 Flash Control 9 4. 5. 5.1 Operating Modes 9 TrueFFS Technology 10 General Description 10 Built-In Operating System Support 10 TrueFFS Software Development Kit (SDK) 11 File Management 11 Bad-Block Management 11 Wear-Leveling 11 Power Failure Management 12 Error Detection/Correction 12 Sp

Features

Single-chip plug-n-play flash disk Low power, single 3.3V or 5V power supply 16MByte (MB) to 1GByte (GB) capacity Simple, easy-to-integrate interface 8KB sized memory window Boot OS capability Proprietary TrueFFS® technology for full hard disk emulation, high data reliability and maximum flash lifetime Software tools for programming, duplicating, testing and debugging Hardware Compatibility 32-pin DIP, JEDEC standard, EEPROM-compatible pinout Pinout compatible with DiskOnChip Millennium DIP 8M.
