IS32FL3240 30-CHANNEL LED DRIVER

Lumissil

IS32FL3240 Description

IS32FL3240 30-CHANNEL LED DRIVER GENERAL .
The IS32FL3240 is an LED driver with 30 constant current channels.

IS32FL3240 Features

* 2.7V to 5.5V VCC supply
* 1MHz I2C interface, automatic address increment function with readout function
* Four selectable I2C addresses
* Accurate Color Rendition - Selectable 16-bit PWM 256/1024/4096/65536 - 8-bit Dot correction - 8-bit Global current adjust
* Open/Short dete

IS32FL3240 Applications

* Automotive clusters
* Dashboards
* Automotive interiors
* Ambient lighting
* Functional lighting Figure 1 Typical Application Circuit Lumissil Microsystems
* www. lumissil. com 1 Rev. A, 07/01/2019 IS32FL3240 Figure 2 Typical Application Circuit (VCC=5V) Note 1: VLED

📥 Download Datasheet

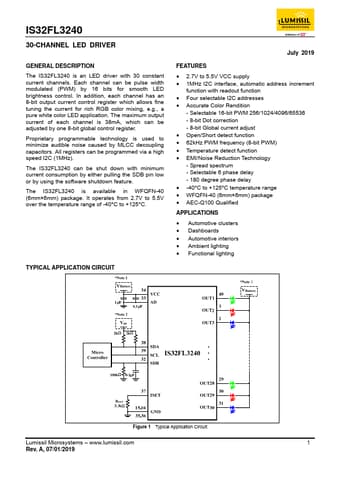

IS32FL3240 Datasheet Preview — Preview of IS32FL3240 PDF

Datasheet Details

Part number: IS32FL3240
Manufacturer: Lumissil
File Size: 493.59 KB
Datasheet: IS32FL3240-Lumissil.pdf
Description: 30-CHANNEL LED DRIVER
