IS31IO7328 MULTI-FUNCTION I/O DRIVER

IS31IO7328 Description

IS31IO7328 MULTI-FUNCTION I/O DRIVER GENERAL .
The IS31IO7328 2-wire serial-interfaced peripheral features 8 I/O ports.

IS31IO7328 Features

* 8 I/O ports. Ports are divided into four push pull I/Os and four open-drain I/Os and transition detection. Any of the 8 I/O ports can be configured as an input or an output. All I/O ports configured as inputs are continuously monitored for state changes (transition detection). State changes are indi

IS31IO7328 Applications

* Cell phones
* Notebooks
* SAN/NAS
* Satellite radio
* Servers
* Automotive TYPICAL APPLICATION CIRCUIT Figure 1 Typical Application Circuit Lumissil Microsystems
* www. lumissil. com 1 Rev. D, 03/21/2024 IS31IO7328 PIN CONFIGURATION Package Pin Configuration

📥 Download Datasheet

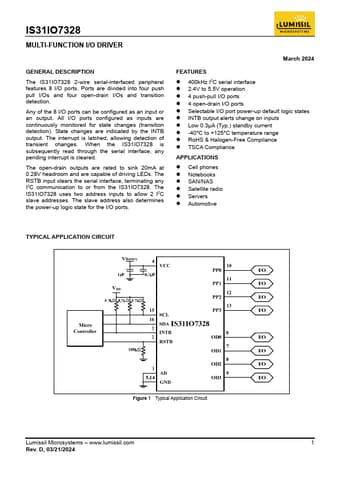

Preview of IS31IO7328 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS31IO7328
Manufacturer
Lumissil
File Size
417.90 KB
Datasheet
IS31IO7328-Lumissil.pdf
Description
MULTI-FUNCTION I/O DRIVER
