MUR1640CT, MUR1620CT - Switchmode Power Rectifiers

Luguang Electronic

Datasheet Details

Part number	MUR1640CT, MUR1620CT
Manufacturer	Luguang Electronic
File Size	249.95 KB
Description	Switchmode Power Rectifiers

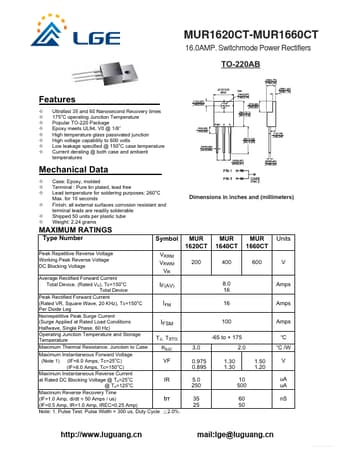

Datasheet	MUR1620CT_LuguangElectronic.pdf
Note	This datasheet PDF includes multiple part numbers: MUR1640CT, MUR1620CT. Please refer to the document for exact specifications by model.

Ultrafast 35 and 60 Nanosecond Recovery times 175oC operating Junction Temperature Popular TO-220 Package Epoxy meets UL94, V0 @ 1/8” High temperature glass passivated junction High voltage capability to 600 volts Low leakage specified @ 150oC case temperature Current derating @ both case and ambient temperatures Mechanical Data Case: Epoxy, molded Terminal : Pure tin plated, lead free Lead temperature for soldering purposes: 260oC Max. for 10 seconds Finish: all external surfaces corrosion res.
