MB6F - Silicon Bridge Rectifiers

Product Overview

Luguang Electronic

Part number	MB6F
Manufacturer	Luguang Electronic
File Size	196.12 KB
Description	Silicon Bridge Rectifiers
Datasheet	MB6F Datasheet

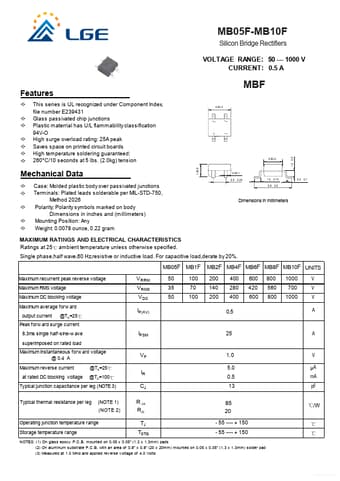

Additional preview pages of the MB6F datasheet.

This series is UL recognized under Component Index, file number E239431 Glass passivated chip junctions Plastic materrial has U/L flammability classification 94V-O High surge overload rating: 25A peak Saves space on printed circuit boards High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs. (2.0kg) tension 1. 4¡À0.2 4.8¡À0.2 MBF 3.8¡0 À .2 Mechanical Data Case: Molded plastic body over passivated junctions Terminals: Plated leads solderable per MIL-STD-750.
