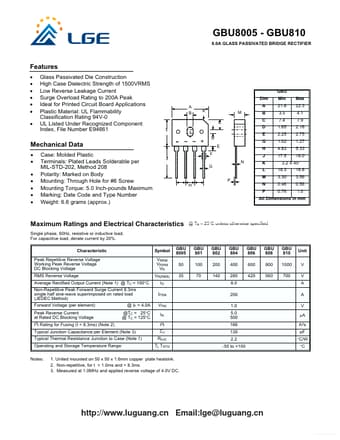

GBU8005 - GBU810
8.0A GLASS PASSIVATED BRIDGE RECTIFIER
Features
· · · · · · · Glass Passivated Die Construction High Case Dielectric Strength of 1500VRMS Low Reverse Leakage Current Surge Overload Rating to 200A Peak Ideal for Printed Circuit Board Applications Plastic Material: UL Flammability Classification Rating 94V-0 UL Listed Under Recognized Component Index, File Number E94661
GBU Dim
A B K C L
Min 21.8 3.5 7.4 1.65 2.25 1.02 4.83 17.5 18.3 3.30 0.46 0.76
Max 22.3 4.1 7.9 2.16 2.75 1.27 5.33 18.0 18.8 3.56 0.56 1.0
A
M
B C D E G H J
Mechanical Data
· · · · · · · Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Marked on Body Mounting: Through Hole for #6 Screw Mounting Torque: 5.
