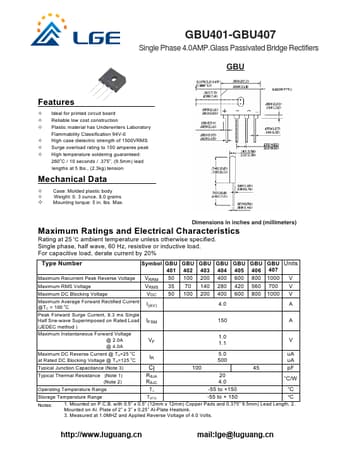

GBU403, GBU401 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers

Luguang Electronic

Datasheet Details

Part number	GBU403, GBU401
Manufacturer	Luguang Electronic
File Size	166.51 KB
Description	Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
Datasheet	GBU401-LuguangElectronic.pdf
Note	This datasheet PDF includes multiple part numbers: GBU403, GBU401. Please refer to the document for exact specifications by model.

Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 High case dielectric strength of 1500VRMS Surge overload rating to 150 amperes peak High temperature soldering guaranteed: o 260 C / 10 seconds / .375”, (9.5mm) lead lengths at 5 lbs. , (2.3kg) tension Mechanical Data Case: Molded plastic body Weight: 0. 3 ounce, 8.0 grams Mounting torque: 5 in. lbs. Max. Dimensions in inches and (millimeters) Maximum Ra.
