GBU10M, GBU10A - Silicon Bridge Rectifiers

Luguang Electronic

📥 Download Datasheet

GBU10M Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU10M, GBU10A. Please refer to the document for exact specifications by model.

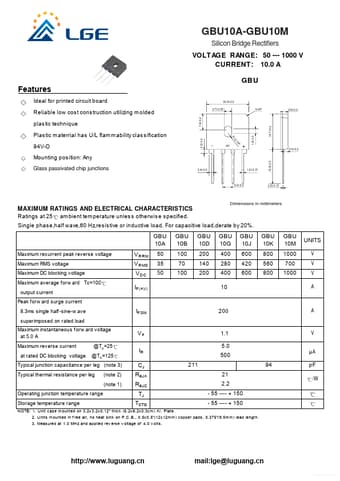

datasheet Preview Page 2

Datasheet Details

Part number	GBU10M, GBU10A
Manufacturer	Luguang Electronic
File Size	181.58 KB
Description	Silicon Bridge Rectifiers
Datasheet	GBU10A_LuguangElectronic.pdf
Note	This datasheet PDF includes multiple part numbers: GBU10M, GBU10A. Please refer to the document for exact specifications by model.

GBU10M Product details

Features

Ideal for printed circuit board Reliable low cos t cons truction utilizing m olded plas tic technique Plas tic m aterrial has U/L flam m ability clas s ification 2.2± 0.2 7.9± 0.2 22.3± 0.3 3.7± 0.35 GBU 4 45° 3.8± 0.2 94V-O Mounting pos ition: Any Glass passivated chip junctions - AC + 1.9± 0.3 18.7± 0.2 2.4± 0.2 1.2± 0.15 5.0± 0.3 0.5± 0.15 Dimensions in millimeters.
