DB201 - (DB201 - DB203) Silicon Bridge Rectifiers

Product Overview

Luguang Electronic

Part number	DB201
Manufacturer	Luguang Electronic
File Size	162.75 KB
Description	(DB201 - DB203) Silicon Bridge Rectifiers
Datasheet	DB201 Datasheet
Note	This datasheet PDF includes multiple part numbers: DB201, DB203. Please refer to the document for exact specifications by model.

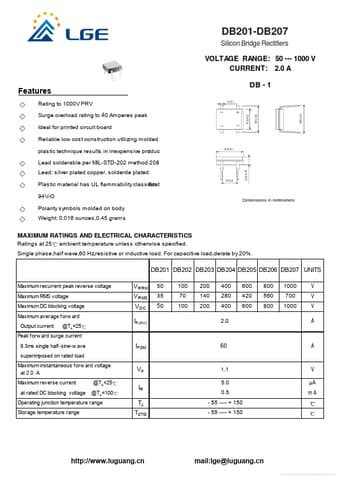

Additional preview pages of the DB201 datasheet.

Rating to 1000V PRV Surge overload rating to 4 0 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive produc t Lead solderable per MIL-STD-202 method 208 5± 0.2 2.5± 0.15 8.3± 0.1 1± 0.1 6.3± 0.2 DB - 1 Lead: silver plated copper, solderde plated Plastic material has UL flammability classificat ion 94V-O Polarity symbols molded on body Weight: 0.016 ounces,0.45 grams Dimensions in millimeters.
