DB106S - Glass Passivated Bridge Rectifiers

Product Overview

Luguang Electronic

Part number	DB106S
Manufacturer	Luguang Electronic
File Size	258.77 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	DB106S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB106S, DB101. Please refer to the document for exact specifications by model.

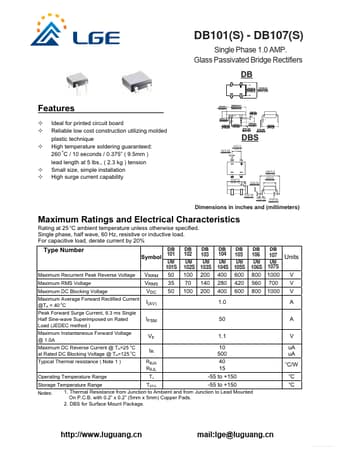

Additional preview pages of the DB106S datasheet.

Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: o 260 C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation High surge current capability DBS .047(1.20) .040(1.02) .205(5.2) .195(5.0) .404(10.3) .386(9.80) .335(8.51) .320(8.13) 45 0 .255(6.5) .245(6.2) .013(0.33) .0088(0.22) .130(3.30) .120(3.05) .060(1.53) .040(1.02) .013(0.33) .003(0.076) Dimensio.
