LP6482S - 36V/2.5A Step-down Converter

LP6482S Description

Preliminary Datasheet LP6482S 340KHz, 36V/2.5A Step-down Converter With Soft-Start General .
The LP6482S contains an independent 340KHz constant frequency, current mode, PWM step-down converters.

LP6482S Features

* Input Voltage Range: 4.5V to 36V
* Output Voltage Range: 0.6V to 12V
* 2500mA Load Current (LP6482SSPF)
* Up to 96% Efficiency

LP6482S Applications

* It provides fast transient response and cycle-by-cycle limit with current mode control. And adjustable soft start prevents inrush current at turn on and the supply current drops below 0.1uA in shutdown mode. The LP6482S is available in a SOP8 and ESOP8 package and is rated over the -40°C to 85°C te

📥 Download Datasheet

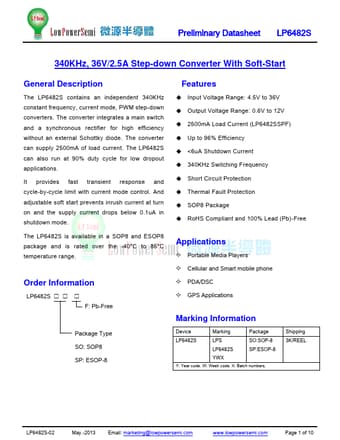

Preview of LP6482S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP6482S
Manufacturer
Lowpowersemi
File Size
939.53 KB
Datasheet
LP6482S-Lowpowersemi.pdf
Description
36V/2.5A Step-down Converter
