LP3307 Constant Current Switching Regulator

LP3307 Description

Preliminary Datasheet LP3307 High Performance, Constant Current Switching Regulator For White LED General .
The LP3307 is a high frequency, asynchronous boost converter for constant current white LED driver applications.

LP3307 Features

* High Efficiency: 93%
* 1.1MHz Fixed-Frequency PWM Operation
* Maximum Output Voltage up to 29V
* Operating Range : 2.2V to 6V
* Shutdown Supply Current:

LP3307 Applications

* The internal MOSFET can support up to 8 White LEDs for backlighting and OLED power application,and the internal soft start function can reduce the inrush current. The LED current is initially set with the external sense resistor. To improve efficiency, the feedback voltage is set to 250mV, which re

📥 Download Datasheet

Preview of LP3307 PDF

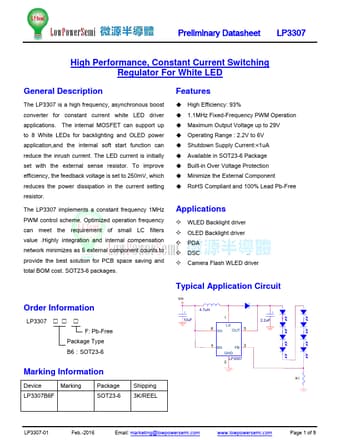

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP3307
Manufacturer
Lowpowersemi
File Size
675.47 KB
Datasheet
LP3307-Lowpowersemi.pdf
Description
Constant Current Switching Regulator
