V5.5MLA0805 - Multilayer Transient Voltage Surge Suppressors

Download the V5.5MLA0805 datasheet PDF. This datasheet also covers the V55 variant, as both devices belong to the same multilayer transient voltage surge suppressors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Leadless 0402, 0603, 0805, 1206 and 1210 Chip Sizes.
  • Multilayer Ceramic Construction Technology.
  • -55oC to +125oC Operating Temperature Range.
  • Operating Voltage Range VM(DC) = 5.5V to 120V.
  • Rated for Surge Current (8 x 20µs).
  • Rated for Energy (10 x 1000µs).
  • Inherent Bi-directional Clamping.
  • No Plastic or Epoxy Packaging Assures Better than 94V-0 Flammability Rating.
  • Standard Low Capacitance Types Available Applicati.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V55-MLA.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number V5.5MLA0805
Manufacturer Littelfuse
File Size 254.32 KB
Description Multilayer Transient Voltage Surge Suppressors
Datasheet download datasheet V5.5MLA0805 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Littelfuse

Part Number Description
V5.5MLA0805L Multilayer Transient Voltage Surge Suppressors
V5.5MLA0402 Multilayer Transient Voltage Surge Suppressors
V5.5MLA0603 Multilayer Transient Voltage Surge Suppressors
V5.5MLA1206 Multilayer Transient Voltage Surge Suppressors
V5.5MLN41206 Multiline Transient Voltage Surge Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

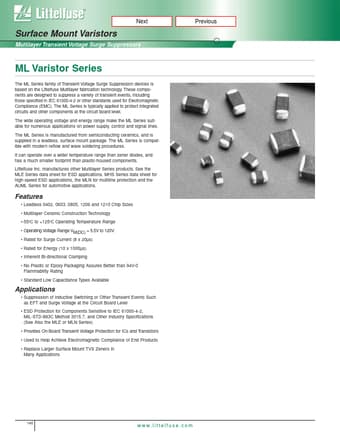

Next Previous Surface Mount Varistors Multilayer Transient Voltage Surge Suppressors ML Varistor Series The ML Series family of Transient Voltage Surge Suppression devices is based on the Littelfuse Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The ML Series is typically applied to protect integrated circuits and other components at the circuit board level. The wide operating voltage and energy range make the ML Series suitable for numerous applications on power supply, control and signal lines. The ML Series is manufactured from semiconducting ceramics, and is supplied in a leadless, surface mount package.
