SZ1.5SMC7.5AT3G - TVS Diodes

Download the SZ1.5SMC7.5AT3G datasheet PDF. This datasheet also covers the SZ1.5SMC6.8AT3G variant, as both devices belong to the same tvs diodes family and are provided as variant models within a single manufacturer datasheet.

Description

The SZ1.5SMC series is designed to protect voltage sensitive components from high voltage, high energy transients.

They have excellent clamping capability, high surge capability, low zener impedance and fast response time.

Features

  • & Benefits.
  • Zener Transient Overvoltage Suppressors.
  • Working Peak Reverse Voltage Range.
  • 5.8 V to 77.8 V.
  • Standard Zener Breakdown Voltage Range.
  • 6.45 V to 95.5V.
  • Peak Power.
  • 1500 W @ 1 ms.
  • ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact).
  • ESD Rating of Class 3 (> 16 KV) per Human Body Model.
  • Maximum Clamp Voltage @ Peak Pulse Current.
  • Low Leakage < 5 µA Above 10 V.
  • VBR @TJ = VBR@25°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SZ1.5SMC6.8AT3G-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SZ1-20-10-1 (SZ1-xx-xx) Zener Diode Chips Sussex Semiconductor
SZ1-xx-xx-x (SZ1-xx-xx) Zener Diode Chips Sussex Semiconductor
SZ100 (SZ1xx) Zener Diodes Sino-American Silicon
SZ100SM (SZ1xxSM) 3 Watt Zeners Solid State Devices
SZ1010 Surface Mount Silicon Zener Diodes EIC discrete Semiconductors

Other Datasheets by Littelfuse

Part Number Description
SZ1.5SMC75AT3G TVS Diodes
SZ1.5SMC10AT3G TVS Diodes
SZ1.5SMC12AT3G TVS Diodes
SZ1.5SMC13AT3G TVS Diodes
SZ1.5SMC15AT3G TVS Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

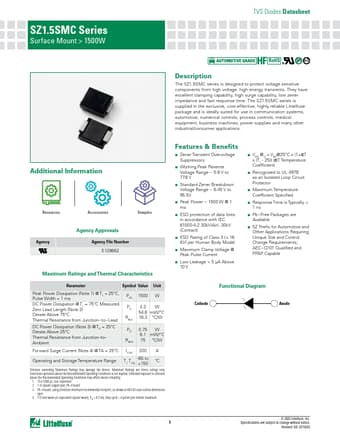

SZ1.5SMC Series Surface Mount > 1500W TVS Diodes Datasheet RoHS Pb e3 Description The SZ1.5SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1.5SMC series is supplied in the exclusive, cost-effective, highly reliable Littelfuse package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
