SP5001-04TTG, SP5001 4 Channel Common Mode Filter

SP5001-04TTG Description

TVS Diode Array (SPA®Diodes) Low Capacitance ESD Protection - SP5001 Series SP5001 Series 4ChannelTVSCommonModeFilter RoHS Pb GREEN .
The SP5001 Series is a highly integrated Common Mode Filter (CMF) providing both ESD protection and EMI common mode noise filtering for systems using.

SP5001-04TTG Features

* Large differential bandwidth > 2.5 GHz
* High Common Mode Stop Band Attenuation: > 25 dB at 700 MHz > 30 dB at 800 MHz

SP5001-04TTG Applications

* TDFN-10 2.50mm × 2.00mm × 0.75mm package with 0.50mm lead pitch
* RoHS-compliant, Leadfree packaging
* Moisture Sensitivity Level (MSL-1)
* HDMI/DVI Display in Mobile Phones
* MIPI D-PHY (CSI-2, DSI, etc) in Mobile Phones and Digital Still Cameras Pin3 P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SP5001-04TTG, SP5001. Please refer to the document for exact specifications by model.

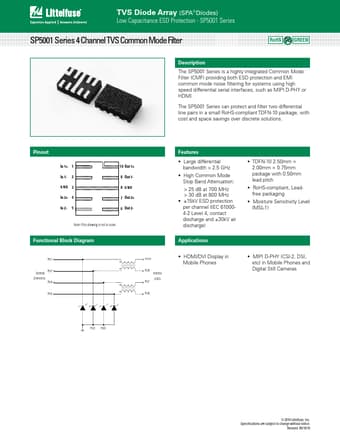

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP5001-04TTG, SP5001
Manufacturer
Littelfuse ↗
File Size
546.34 KB
Datasheet
SP5001-Littelfuse.pdf
Description
4 Channel Common Mode Filter
Note
This datasheet PDF includes multiple part numbers: SP5001-04TTG, SP5001.
Please refer to the document for exact specifications by model.
