SP4031 TVS Diode Arrays

SP4031 Description

SP4031 Series TVS Diode Arrays (SPA®Diodes) Lightning Surge Protection - SP4031 RoHS Pb GREEN Functional Block Diagram 1 (PIN-IN) 2 (N/C) 3 (N/C) 4.
The SP4031 hybrid protector offers both overcurrent and differential only overvoltage protection for applications such as 10/100/1000BaseT ports.

SP4031 Applications

* such as 10/100/1000BaseT ports. Compliant with the newest standards of overvoltage per industry standard ITU-T K.21. Tested to basic tests levels 2.5kV overvoltage. Flowthrough package layout allows PCB trace routing directly through the SP4031 without changing pitch dimensions, thus having less imp

📥 Download Datasheet

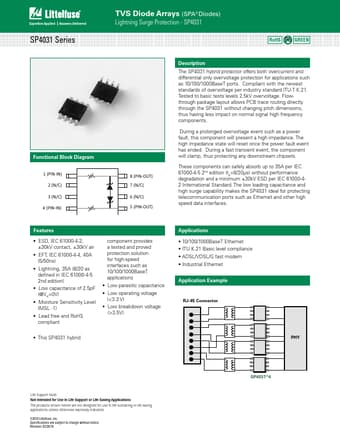

Preview of SP4031 PDF
datasheet Preview Page 2 datasheet Preview Page 3
