SMF4L6.0AT1G - TVS Diodes

Download the SMF4L6.0AT1G datasheet PDF. This datasheet also covers the SMF4L5.0AT1G variant, as both devices belong to the same tvs diodes family and are provided as variant models within a single manufacturer datasheet.

Description

The SMF4L-T1G low leakage series is designed to protect sensitive systems or components from high voltage, high energy transients.

It offers a fast response time, low Zener impedance, high surge and excellent clamping capabilities.

Features

  • Zener transient overvoltage suppressors.
  • Working peak reverse voltage range 5 V to 78 V for unidirectional.
  • EFT (Electrical Fast Transients) rating of 40 A per IEC 61000-44.
  • Small footprint: footprint area of 8.45 mm2.
  • Peak power: 400 watts @ 1 ms.
  • Supplied in 8 mm tape and.
  • Low leakage reel.
  • 3,000 units per reel.
  • Response time is typically < 1.
  • Lead orientation in tape: ns cathode lead to sprocket holes.
  • ESD rating of class 3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMF4L5.0AT1G-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SMF4L6.0A 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODES
SMF4L6.0A Surface Mount Transient Voltage Suppressors ANOVA
SMF4L6.0A Surface Mount Transient Voltage Suppressors SEMIWILL
SMF4L6.0AQ 400W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODES
SMF4L6.0AQ 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODES

Other Datasheets by Littelfuse

Part Number Description
SMF4L6.0A TVS Diodes
SMF4L6.5A TVS Diodes
SMF4L6.5AT1G TVS Diodes
SMF4L60A TVS Diodes
SMF4L60AT1G TVS Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

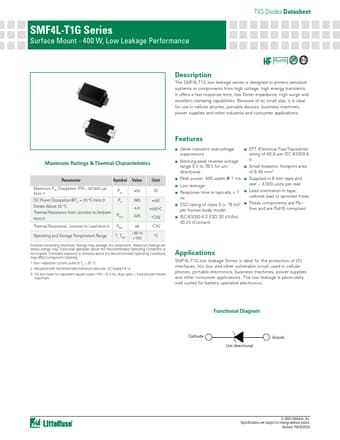

SMF4L-T1G Series Surface Mount - 400 W, Low Leakage Performance TVS Diodes Datasheet RoHS Pb e3 Description The SMF4L-T1G low leakage series is designed to protect sensitive systems or components from high voltage, high energy transients. It offers a fast response time, low Zener impedance, high surge and excellent clamping capabilities. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and other industrial and consumer applications. Maximum Ratings & Thermal Characteristics Parameter Symbol Value Unit Maximum PPK Dissipation (PW−10/1000 µs) (Note 1) PPK DC Power Dissipation @ TA = 25 °C (Note 2) PD Derate Above 25 °C Thermal Resistance from Junction to Ambient (Note 2) RƟJA 400 W 385 mW 4.
