SMF4L5.0A TVS Diodes

SMF4L5.0A Description

SMF4L Series Surface Mount * 400W TVS Diode Datasheet RoHS Pb e3 Uni-directional Bi-directional Additional Information Resources Agency .
The SMF4L series of SOD-123FL small and flat lead low-profile plastic package is designed specifically to protect sensitive electronic equipment from.

SMF4L5.0A Features

* & Benefits
* 400W peak pulsepower capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%
* Compatible with industrial standard package SOD-123FL
* Low profile: maximum height of 1.08 mm.
* Low inductance, excellent clamping capability
* For surface mounted app

SMF4L5.0A Applications

* to optimize board space
* Typical failure mode is short from over-specified voltage or current
* Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
* IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
* ESD protection of data lines in accordance with IEC 61000-4-2

📥 Download Datasheet

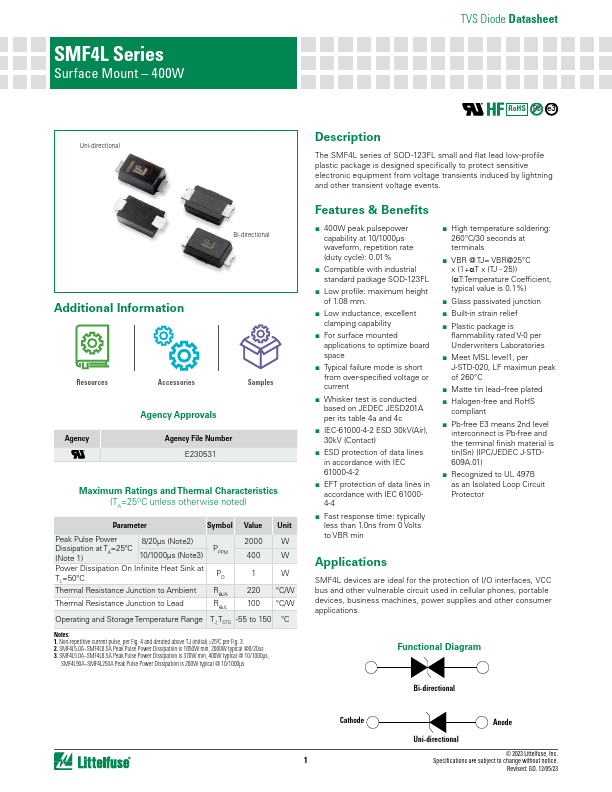

Preview of SMF4L5.0A PDF

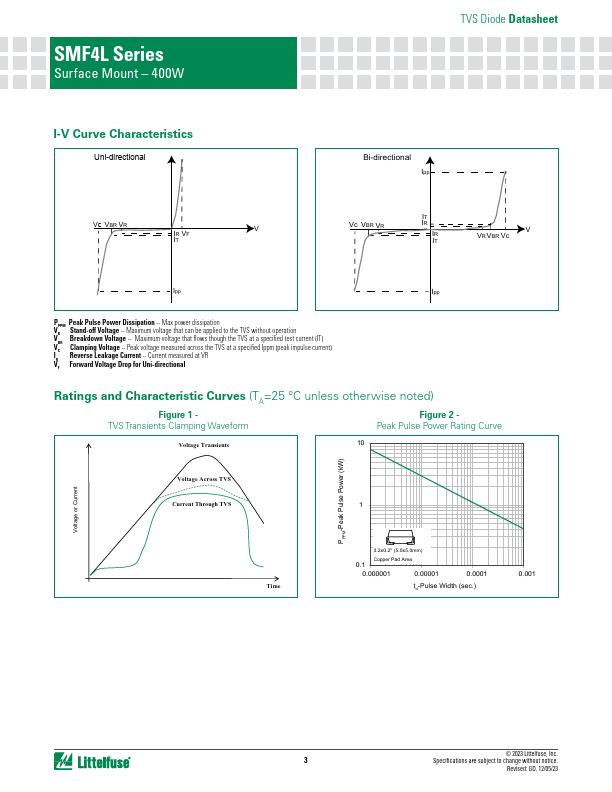

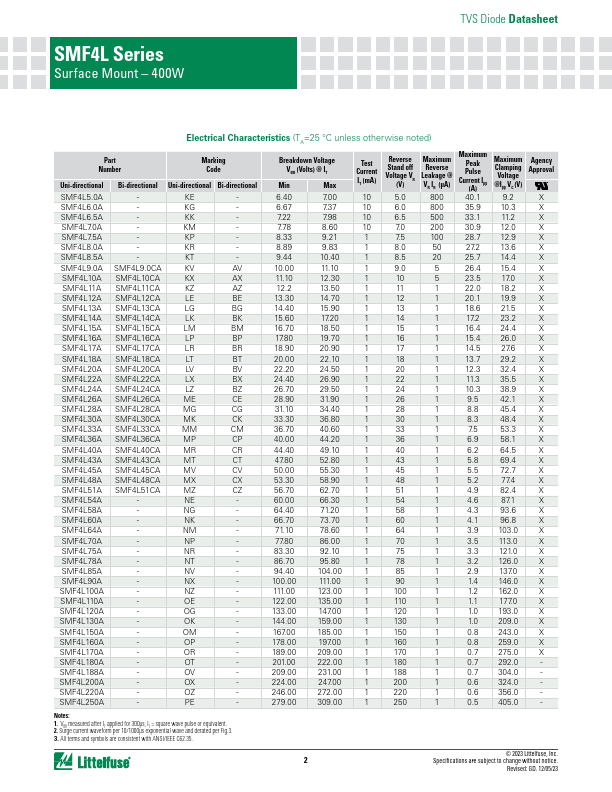

datasheet Preview Page 2 datasheet Preview Page 3
