SMBJ17A - TVS Diode

Download the SMBJ17A datasheet PDF. This datasheet also covers the SMBJ5.0 variant, as both devices belong to the same tvs diode family and are provided as variant models within a single manufacturer datasheet.

Description

The SMBJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

  • Excellent clamping capability.
  • Low incremental surge resistance.
  • Typical IR less than 1μA when VBR min>12V.
  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMBJ5.0-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SMBJ17A TRANSIENT VOLTAGE SUPPRESSOR AiT Semiconductor
SMBJ17A Surface Mount Transient Voltage Suppressor Taiwan Semiconductor
SMBJ17A SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS LITE-ON
SMBJ17A 600 Watt Transient Voltage Suppressors Fairchild Semiconductor
SMBJ17A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR EIC

Other Datasheets by Littelfuse

Part Number Description
SMBJ17A-HR Transient Voltage Suppression Diodes
SMBJ17A-HRA Transient Voltage Suppression Diodes
SMBJ17 TVS Diode
SMBJ170 TVS Diode
SMBJ170A TVS Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

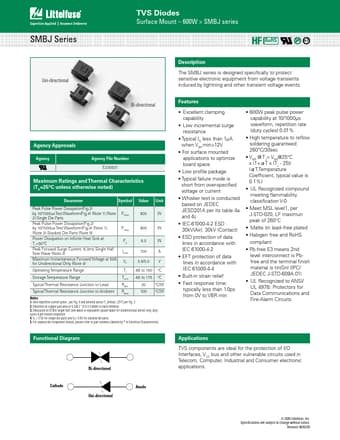

SMBJ Series TVS Diodes Surface Mount – 600W > SMBJ series RoHS Pb e3 Uni-directional Description The SMBJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4) (Note 1),(Note PPPM 600 W 2)-Single Die Parts Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4) (Note 1), (Note 2)-Stacked Die Parts (Note 5) PPPM 800 W Power Dissipation on Infinite Heat Sink at TL=50OC PD Peak Forward Surge Current, 8.
