SM36-02HTG - TVS Diode Arrays

Description

The SM series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges.

Features

  • ESD, IEC 61000-4-2, ±30kV contact, ±30kV air.
  • EFT, IEC 61000-4-4, 50A (5/50ns).
  • Lightning, IEC 610004-5 2nd edition, 24A (tP=8/20μs, SM05).
  • Working voltages: 5V, 12V, 15V, 24V and 36V.
  • Low clamping voltage.
  • Low leakage current.
  • AEC-Q101 qualified (SOT23-3 package).
  • Moisture Sensitivity Level(MSL -1).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SM36 STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY KD
SM36 TVS MCC
SM36 TVS DIODE ARRAY GME
SM36 TVS Diode Array Semtech
SM36 Bidirectional/Unidirectional TVS array Microsemi

Other Datasheets by Littelfuse

Part Number Description
SM36 TVS Diode Arrays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

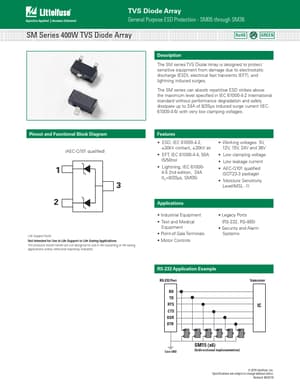

TVS Diode Array General Purpose ESD Protection - SM05 through SM36 SM Series 400W TVS Diode Array RoHS Pb GREEN Description The SM series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. The SM series can absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard without performance degradation and safely dissipate up to 24A of 8/20µs induced surge current (IEC61000-4-5) with very low clamping voltages.
