SDP0240T023G5RP, SDP0080T023G5RP Thyristors

SDP0240T023G5RP Description

SIDACtor ® Protection Thyristors Teccor® brand SIDACtor® DSL Protection Devices SDP Series - SOT23-5 .
This new SIDACtor series is targeted for the tertiary or line driver side protection position for VDSL2+, ADSL2 applications and general I/O protectio.

SDP0240T023G5RP Features

* & Benefits
*  Lower overshooting protection than clamping
*  SOT23-5 surface mount package
*  Low insertion loss
* Low capacitance
*  Bidirectional transient voltage protection
*  Robust surge rating
*  Starts to switch in nanoseconds

SDP0240T023G5RP Applications

* and general I/O protection functions. This new low capacitance over voltage protection does not require a bias voltage and is sufficiently robust for the chip-side position behind the coupling transformer. This SOT23-5 solution, with its flow-through design, minimizes PCB trace layout routing, while

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDP0240T023G5RP, SDP0080T023G5RP. Please refer to the document for exact specifications by model.

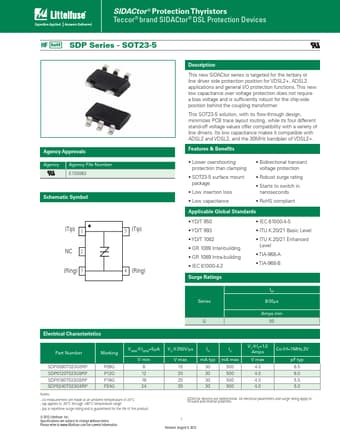

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDP0240T023G5RP, SDP0080T023G5RP
Manufacturer
Littelfuse ↗
File Size
1.70 MB
Datasheet
SDP0080T023G5RP_Littelfuse.pdf
Description
Thyristors
Note
This datasheet PDF includes multiple part numbers: SDP0240T023G5RP, SDP0080T023G5RP.
Please refer to the document for exact specifications by model.
