SA12AG, SA100AG - Zener Transient Voltage Suppressors

Littelfuse

📥 Download Datasheet

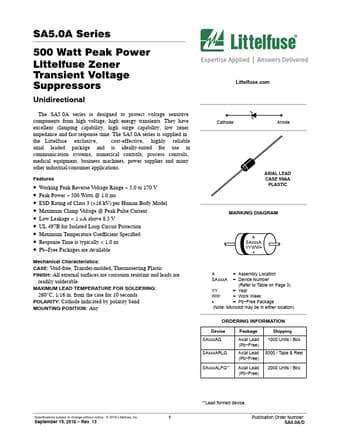

SA12AG Datasheet Preview — This datasheet PDF includes multiple part numbers: SA12AG, SA100AG. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SA12AG, SA100AG
Manufacturer: Littelfuse ↗
File Size: 316.39 KB
Datasheet: SA100AG-Littelfuse.pdf
Description: Zener Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: SA12AG, SA100AG.
Please refer to the document for exact specifications by model.

SA12AG Product details

Features

Working Peak Reverse Voltage Range.
5.0 to 170 V.
Peak Power.
500 Watts @ 1.0 ms.
ESD Rating of Class 3 (>16 kV) per Human Body Model.
Maximum Clamp Voltage @ Peak Pulse Current.
Low Leakage < 1 mA above 8.5 V.
UL 497B for Isolated Loop Circuit Protection.
Maximum Temperature Coefficient Specified.
Response Time is typica.
