S8010LS2 - Thyristors

Description

This Sxx10x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.

Features

  • Symbol IT(RMS) VDRM/ VRRM IGT Value 10 400 to 1000 0.2 to 15 Additional Information Unit A V mA Datasheet Resources Samples Features & Benefits.
  • Halogen free and RoHS compliant.
  • Glass.
  • passivated junctions.
  • Voltage capability up to 1000 V.
  • Surge capability up to 100 A at 60 Hz half cycle.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S8012R Thyristor INCHANGE
S8015L Thyristor INCHANGE
S80 SMD Single Phase Bridge Rectifier Diotec
S80 Surface Mount Si-Bridge Rectifiers Diotec Semiconductor
S80016 Series 8000 Fuseblocks Cooper Electronic Technologies

Other Datasheets by Littelfuse

Part Number Description
S8010LS3 Thyristors
S8010DS2 Thyristors
S8010DS3 Thyristors
S8010NS2 Thyristors
S8010NS3 Thyristors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

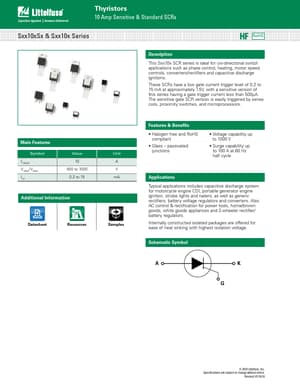

Thyristors 10 Amp Sensitive & Standard SCRs Sxx10xSx & Sxx10x Series RoHS Description This Sxx10x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 0.2 to 15 mA at approximately 1.5V, with a sensitive version of this series having a gate trigger current less than 500µA. The sensitive gate SCR version is easily triggered by sense coils, proximity switches, and microprocessors. Main Features Symbol IT(RMS) VDRM/ VRRM IGT Value 10 400 to 1000 0.
